เครื่องบันทึกเสียงดิจิตอล ZOOM H3-VR พร้อมไมโครโฟนแบบ Ambisonics Array 4 ตัวรอบทิศทาง บันทึกได้สูงสุด 24 บิต / 96kHz บันทึกไปยังการ์ด SD สูงสุด 512GB จากแบรนด์ ZOOM
ZOOM H3-VR
VR AUDIO RECORDER
https://www.youtube.com/watch?time_continue=45&v=nYmYCTQqKOg&feature=emb_title
Whether you’re a game developer, filmmaker or musician, virtual reality is the undeniable future of content creation. While 360-video is exploding in popularity, the ability to easily create 360-audio has lagged behind…until now.
One-Stop VR Audio
The Zoom H3-VR virtual reality audio recorder is the complete solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in the palm of your hand.
A New Way to go from A to B
In the past, capturing VR audio required a dedicated Ambisonic mic, a separate recorder and a computer for encoding the audio from raw Ambisonics A format to VR-ready Ambisonics B format. Now, with the H3-VR, all of the encoding and decoding is done on board, saving time, money and effort at every step.
Audio For Every Reality
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081109/ambicon3.png)
Ambisonics Audio for VR
The H3-VR’s 4-capsule Ambisonic mic captures precise 360-degree VR audio recordings up to 24 bit/96 kHz. And without ever connecting to a computer, the onboard decoder allows you to export Ambisonics B-format files directly.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081108/binauralicon3.png)
Binaural 3D Stereo
The H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that enhances 2D productions with 3D audio.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081108/stereo_icon3_2.png)
Standard Stereo
The H3-VR even offers standard stereo recording for recordings that will be played out of speakers rather than headphones.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081107/surround_icon3.png)
5.1ch Surround for Video
Free to download, ZOOM Ambisonics Player software can easily convert Ambisonics audio to a 5.1ch surround file that is pre-aligned to the proper speakers, and is exported to your video or audio editor for syncing with standard video.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081107/streaming_icon3.png)
Live Streaming 360
The H3-VR also enables you to live stream events in 360 degrees so that wherever your fans are, they’ll have access to the best seats in the house.

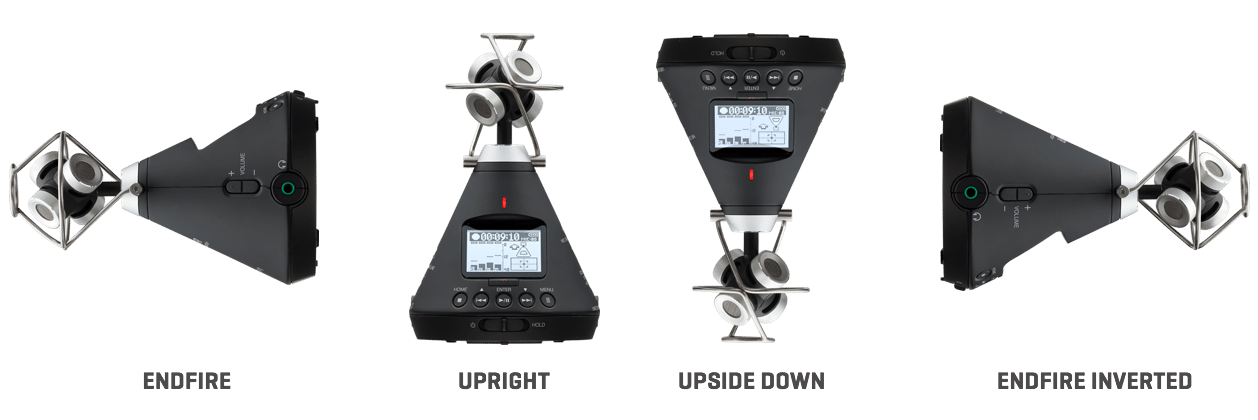

6-Axis Motion Sensor
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081106/05_6Axis_7.png)
Auto Mic Position and Level Detection make placing the H3-VR simple. Whether positioned upright, upside down, endfire or endfire inverted, the H3-VR automatically calibrates so your audio and video are already aligned for post.

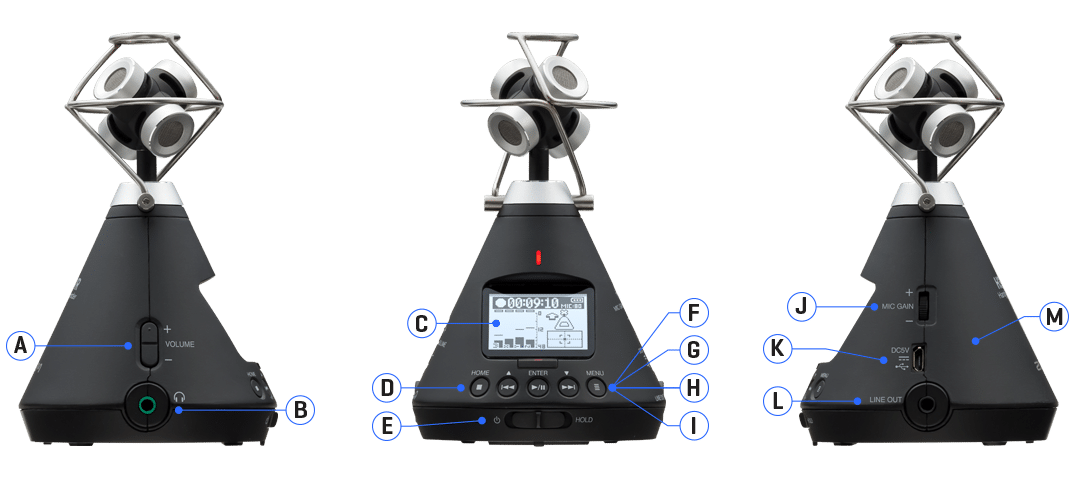

Designed With Intention
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/04/19081105/08_tour_2.png)
SPECS
Recording Media: | Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher) |
---|---|
Recording formats: | Ambisonics A, Ambisonics B (FuMa/AmbiX) WAV 4ch poly (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit Stereo WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit Binaural WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit |
Display: | 1.25″ monochrome LCD (96×64) |
Motion sensor: | 6 axes (3-axis gyro, 3-axis acceleration) |
Built-in Ambisonic mic: | 4 matched unidirectional condenser mics Maximum sound pressure input: 120 dB SPL Mic gain: +18 – +48 dB |
LINE OUT: | Connector: 3.5 mm stereo mini Maximum output level: −10 dBu (1 kHz, 10 kΩ load) |
PHONE OUT: | Connector: 3.5 mm stereo mini Maximum output level: 20 mW + 20 mW (into 32Ω load) |
USB: | Connector: microUSB
Mass storage operation
Audio interface operation
|
Power: | 2 AA batteries (alkaline, rechargeable NiMH or lithium) AC adapter (ZOOM AD-17): DC 5V/1A (supports USB bus power) |
Estimated continuous recording time using batteries: | 48 kHz/24-bit, FuMa Rec Mode
|
External dimensions: | 76 mm (W) × 78 mm (D) × 123 mm (H) |
Weight (main unit only): | 120 g |
