| Power Supply |
AC: 220 V, 50/60 Hz |
| DC: 24 V |
| Power Output |
Rated 120W RMS x 2 |
| Power Consumption |
AC: 520 W (rated output) |
| AC: 286 W (operation at EN60065) |
| DC: 20 A (rated output) |
| Frequency Response |
50 Hz – 20,000 Hz (±3 dB) |
| Distortion |
Less than 1% THD at 1 kHz, 1/3 rated output power |
| Inputs (Sensitivity, Impedance, Connector) |
| MIC 1 |

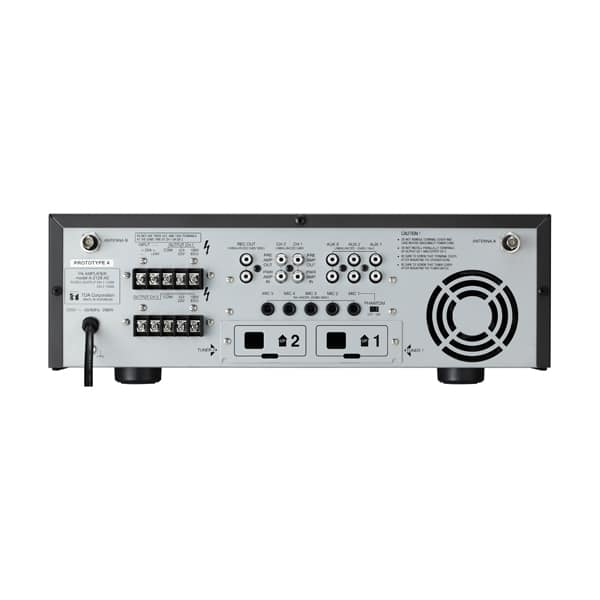

Rear |
1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Echo |
| MIC 2/Wireless 1 |
Rear |
1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Wireless Tuner |
| MIC 3/Wireless 2 |
Rear |
1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack, Wireless Tuner |
| MIC 4 |
Rear |
1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack |
| MIC 5 |
Rear |
1.0mV (-60dB*) Balanced 600Ω, 2Pole-Phone Jack |
| AUX 1 |
Rear |
300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| AUX 2 |
Rear |
300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| AUX 3 |
Rear |
300mV (-10dB*) Unbalanced 10Ω, 2-RCA Pin Jack |
| Speaker Outputs |
100V x 2, 4Ω x 2 |
| PRE AMP OUT |
1.0V (0dB*) Unbalanced 600Ωx2, RCA Pin Jack |
| PWR AMP IN |
1.0V (0dB*) Unbalanced 10Ωx2, RCA Pin Jack |
| REC OUT |
1.0V (0dB*) Unbalanced 600Ω, 2-RCA Pin Jack |
| Phantom Power |
ON or OFF for MIC 1 with switch setting (+21 V DC) |
| External Antenna |
DC +10V for Booster |
| Noise Level (S/N) |
More than 80 dB at All Volume control full CCW |
| More than 50 dB at All Volume control full CW |
| Output Regulation |
Less than 3 dB no load to full load |

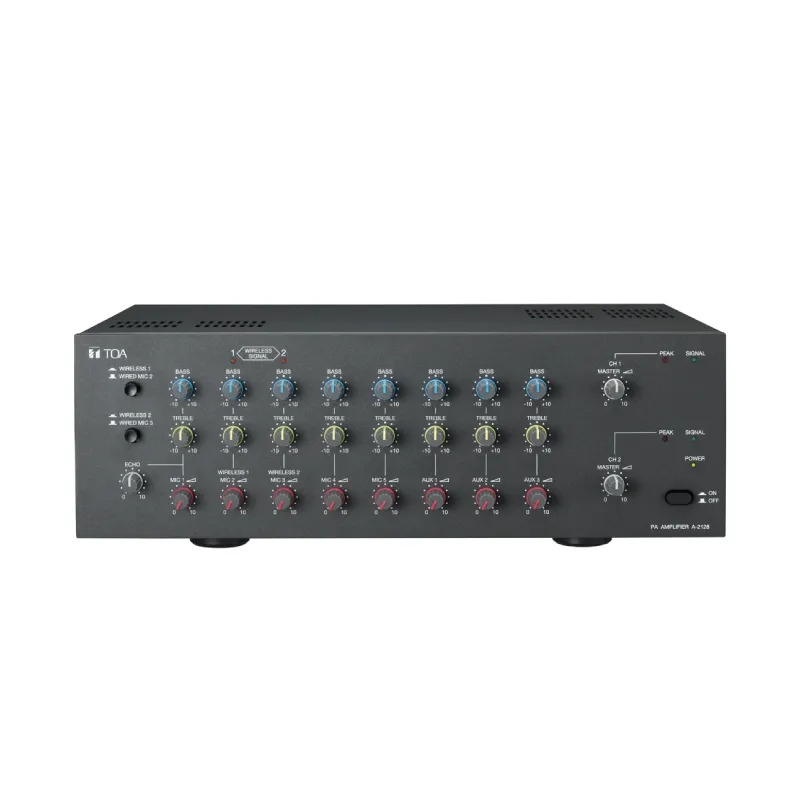

| Controls |
Front |
5 Microphone Gain Controls |
| Front |
3 Aux Gain Controls |
| Front |
8 Bass Tone Controls |
| Front |
8 Treble Tone Controls |
| Front |
1 Echo Level Control |
| Front |
2 Master Controls |
| Front |
1 Power On/Off Switch |
| Tone Control |
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Indicators |
2 LED Wireless signal, 2 LED Signal, 2 LED Peak, 1 LED Power On |
| Ambient Temperature |
0 ℃ to +40 ℃ |
| Finish |
Front Panel: Aluminum Gray
Case: Steel plate, Gray |
| Dimensions |
420 (W) × 144 (H) × 361 (D) mm |
| Weight |
19.5 kg |
