ลำโพงติดเพดาน TANNOY CMS 503DC LP ขนาด 5 นิ้ว 240 วัตต์ พร้อมเทคโนโลยี OmnimagnetTorus Ogive waveguide สำหรับการตอบสนองความถี่สูงและทิศทางที่ดีขึ้น Ceiling Loudspeaker จากยี่ห้อ TANNOY

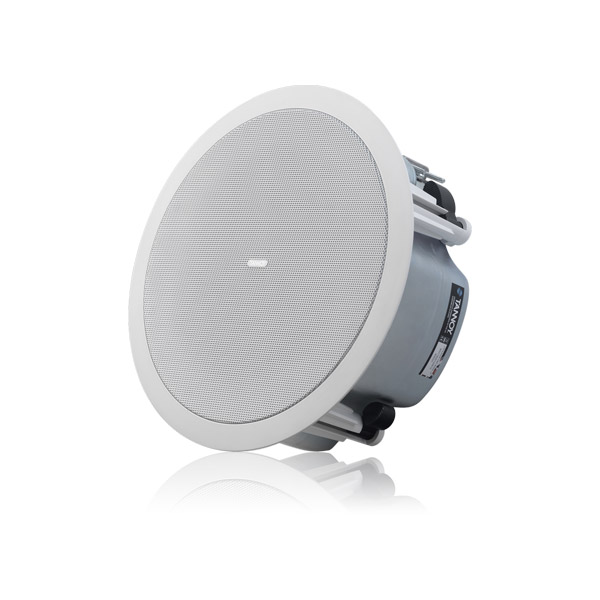

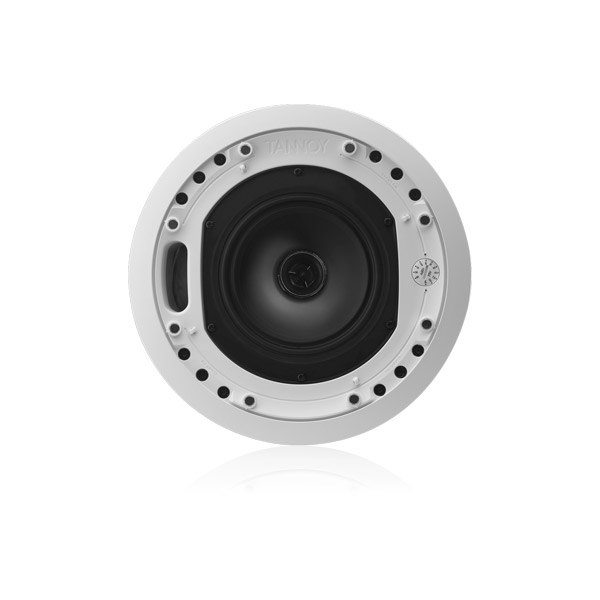

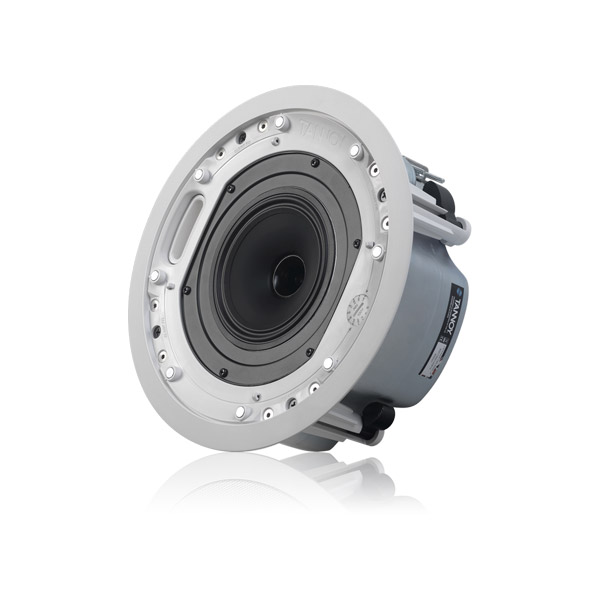

TANNOY CMS 503DC LP
5″ Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications (Low Profile)
![CMS-403DCE-3.0](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084603/TANNOY-CMS-403DCE-3.0.jpg)
CMS 3.0 CMS 503DC LP
The CMS 503DC LP is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
![CMS-1201DCT-ofi](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084616/TANNOY-CMS-1201DCT-ofi.jpg)
Optimised for Installation

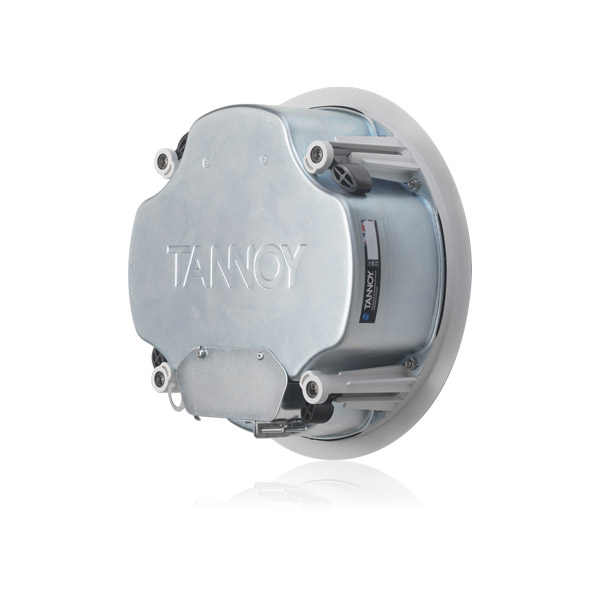

Specifically designed with a 4 way self-aligning clamp system for fast, simple and cost effective installation, CMS 503DC LP features an ultra-shallow back can for applications where cavity space is limited, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
![CMS-1201DCT-lab](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084616/TANNOY-CMS-1201DCT-lab.jpg)
LAB GRUPPEN Ready
The CMS 503DC LP is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
คุณสมบัติ
- Full range ceiling loudspeaker for installation applications
- 60 Watts continuous, 240 Watts peak power
- Next generation 5″ Dual Concentric driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high frequency response and directivity
- Ultra-shallow depth profile for applications where cavity space is restricted
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable magnetic grille for custom painting
- Optional ARCO designer grilles available for minimal architectural impact
- Self-aligning 4 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
- Designed and engineered in England
