• แหล่งจ่ายไฟ PoE
• 10 DANTE channels in/out
• Analog XLR in/out
• ใช้ไมค์ได้ถึง 125 ตัว (เข้ารหัส)/250 (ไม่เข้ารหัส)
• ไมค์ชุดประชุมไร้สายทั้งหมดใช้ช่องสัญญาณ Wireless เพียงช่องเดียว
• ระยะครอบคลุมของสัญญาณอยุ่ที่ 50 เมตร เลือกได้ 5 ระดับ

• Controls up to 125 MXCW640 wireless conference units
• Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
• Operates in 2.4 GHz / 5 GHz frequency bands, including DFS spectrum
• Automatic frequency coordination, interference detection and avoidance
• Dante digital audio (10 inputs/10 outputs)

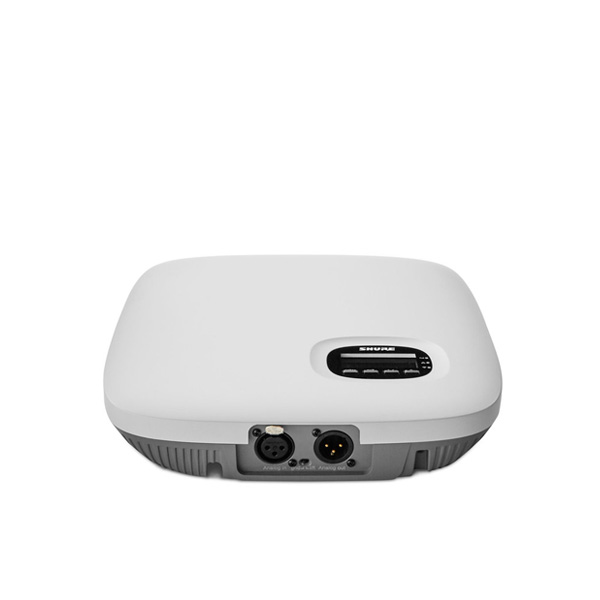

• Analog audio input and output (XLR)
• One Ethernet cable for audio, control, and PoE power
• AES-128 encryption for enhanced privacy

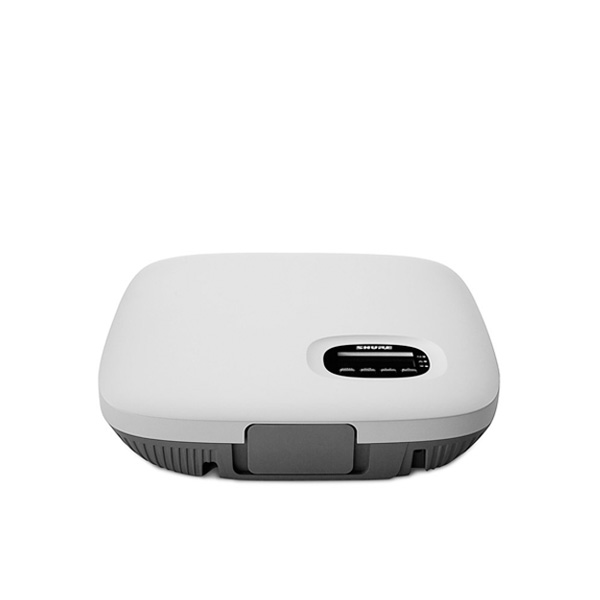

• Display for basic system configuration without a laptop
• LEDs indicate power, wireless connection, and network status
• Includes wall / ceiling mounting plate

AUDIO INPUTS

• Analog Input


• Maximum Input Level 24.9dBV 1% THD+N. Measured at Dante Output. Line Level, Analog Input Gain =
  0dB, Dante Output Gain = 0dB
  10.3dBV 1% THD+N. Measured at Dante Output. Aux Level, Analog Input Gain =
  0dB, Dante Output Gain = 0dB


• Frequency Response 22Hz – 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Line Level, Analog Input Gain
  = 0dB, Dante Output Gain = 0dB
  22Hz – 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Aux Level, Analog Input Gain
  = 0dB, Dante Output Gain = 0dB


• Total Harmonic Distortion + Noise 0.03%, typical Measured at Dante Output. -6dBFS input, 1kHz, Line Level, Analog
  Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz – 22kHz BW
  0.02%, typical Measured at Dante Output. -6dBFS input, 1kHz, Aux Level, Analog
  Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz – 22kHz BW


• Dynamic Range 115dB (A-weighted), 113dB (unweighted), typical Measured at Dante Output. Line Level, Analog Input Gain = 0dB, Dante
  Output Gain = 0dB, 22Hz – 22kHz BW
  112dB (A-weighted), 110dB (unweighted), typical Measured at Dante Output. Aux Level, Analog Input Gain = 0dB, Dante
  Output Gain = 0dB, 22Hz – 22kHz BW


• Preamplifer Equivalent Input Noise -92dBV (A-weighted), typical Line Level, Analog Input Gain = 0dB, 22Hz – 22kHz BW
  -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz – 22kHz BW

AUDIO OUPUTS

• Analog Output


• Maximum Output Level 4.3dBV 1% THD+N. Audio Injected at Dante Input. Dante Input Gain = 0dB,
  Analog Output Gain = 0dB
  Frequency Response 1Hz – 20kHz (+0.5dB/-3dB) Audio Injected at Dante Input. -6dBFS input, Dante Input Gain = 0dB,
  Analog Output Gain = 0dB


• Total Harmonic Distortion + Noise 0.01%, typical Audio Injected at Dante Input. -6dBFS input, 1kHz, Dante Input Gain
  = 0dB, Analog Output Gain = 0dB, 22Hz – 22kHz BW


• Dynamic Range 100dB (A-weighted), 97dB (unweighted), typical Audio Injected at Dante Input. Dante Input Gain = 0dB, Analog Output
  Gain = 0dB, 22Hz – 22kHz BW


• Load Impedance >600Ω, typical


• Type Three-pin Male XLR


• Pinout Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)


• XLR GND Lift Switch Position “Left (Pin 1-GND connected)
  Right (Pin1-GND disconnected)”
  -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz – 22kHz BW


• Input Impedance 10kΩ Line Level
  12kΩ Aux Level


• Confguration Balanced

RF

• WLAN Standard IEEE 802.11a,g


• RF Frequency Bands 2.4GHz ISM / 5GHz UNII


• Sensitivity -80dBm at 10%PER


• Output Power 1mW (Low), 5mW (Medium), 13mW (High),
  25mW (Maximum)


• Antenna Type Proprietary Internal Bi-level Dual-Band PIFA

POWER

• Supply Type Power Over Ethernet, 802.3af, Class 0 PD


• Supply Voltage (at MXCWAPT)


• Power Consumption 12.95W (max), 6.5W (typ)

NETWORK

• Interface Gigabit Ethernet, Dante digital audio


• Link Speed 10/100/1000Mbps


• Networking Addressing Capability DHCP or Manual IP address


• Cable Length 100m (max)


• Cable Type > Cat5e (shielded/unshielded)


• Connector Type RJ45


• Connector LED Status (Green) / Link Speed (Amber)

USER INTERFACE

• Display Type Monochrome FFSTN LCD

• Display Size 1.84 x 0.74” (46.7×18.8mm)

• Display Resolution 152 x 78 (78 ppi)

• LED Status Indication Power, Network Audio, Wireless (Red/Green/Amber)

• Reset Pushbutton for Network/Factory Reset

MECHANICAL

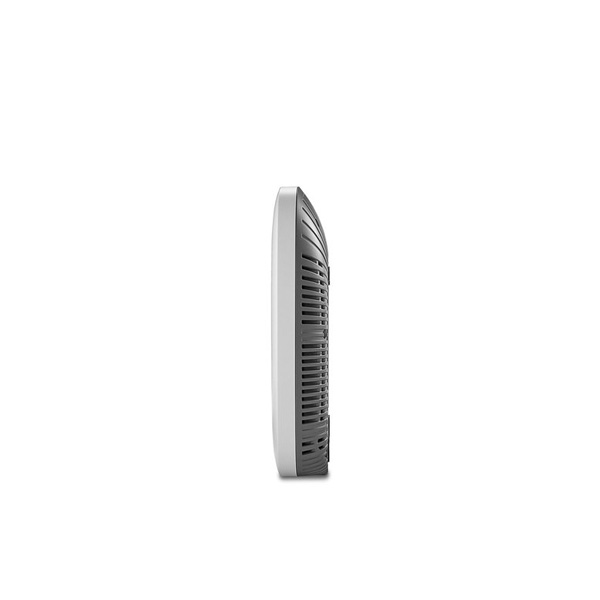

• Dimensions 47.8mm x 242.5mm x 241.8mm (1.88” x 9.55” x9.52”)


• Weight 1.15 kg


• Color White / Gray


• Material Molded Plastic, Die-casted Aluminum

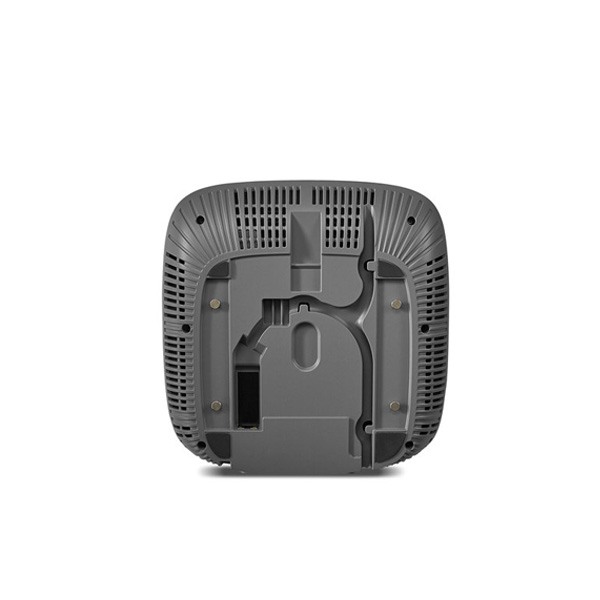

• Mounting Type Wall or ceiling bracket

ENVIRONMENTAL

• Operating Temperature Range -7°C (19.4°F) to 49°C (120.2°F)


• torage Temperature Range -29°C (-20.2°F) to 60°C (140°F)


• Relative Humidity <95%
