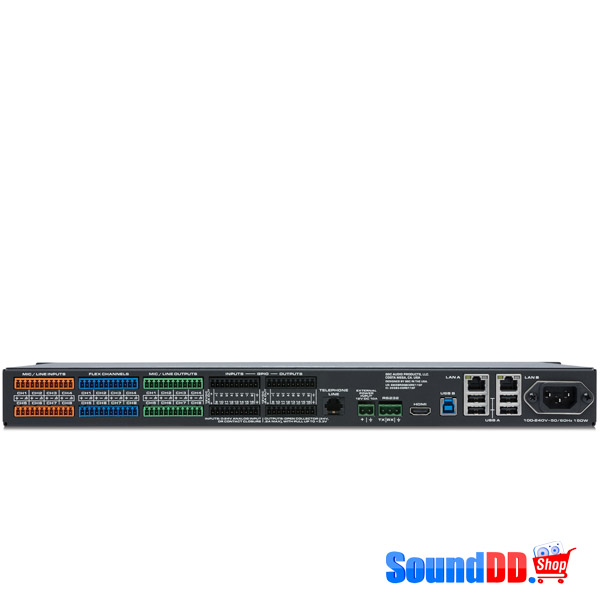

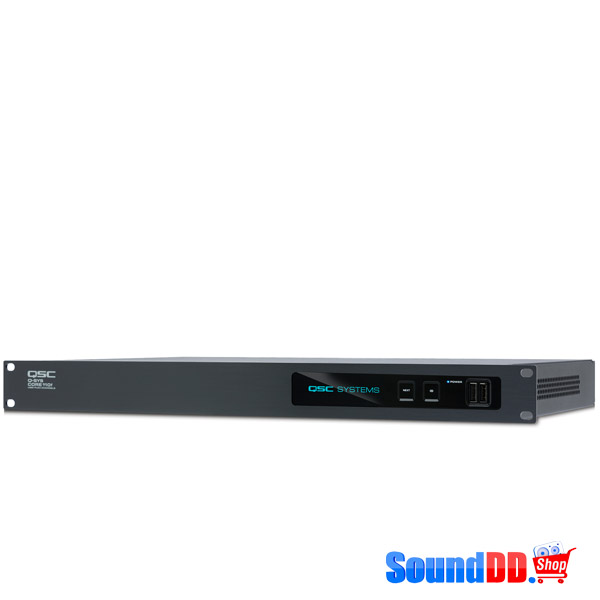

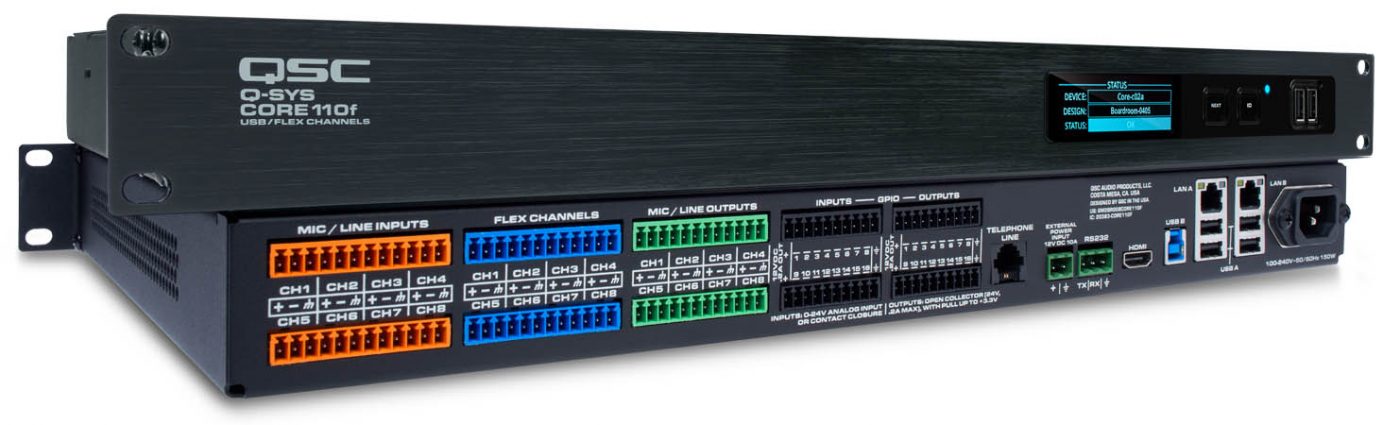

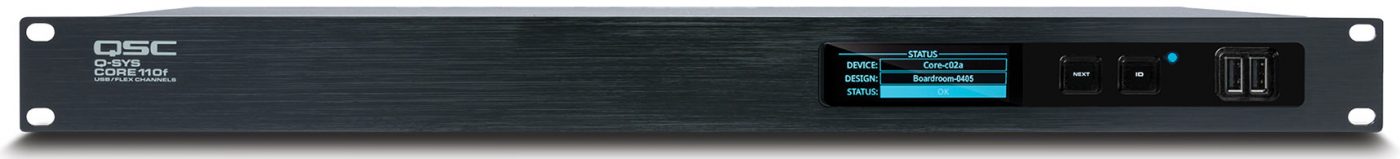

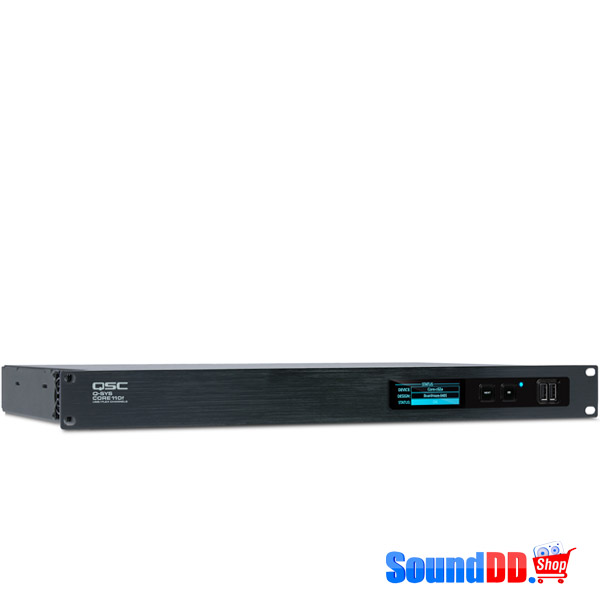

QSC Core 110f Q-SYS Unified Core
QSC Core 110f เครื่องปรับแต่งสัญญาณเสียง ระบบดิจิตอล QSC Core 110f โปรเซสเซอร์ จากแบรนด์ QSX
Unified Core
Q-SYS Core 110f ช่วยลดเสียงสะท้อน (AEC), raw processing power and networked audio channel count Q-SYS Core 110f ให้ประสิทธิภาพสูงสุดสำหรับโซลูชันการประมวลผลภายในห้องที่ดีที่สุด เหมาะสำหรับ
- การยกเลิกเสียงสะท้อนและการขยายเสียงในห้องประชุมขนาดเล็ก ขนาดใหญ่ หรือห้องเอนกประสงค์
- การเสริมสร้างสมรรถนะเสียงในสถานที่แสดงผลงานเช่น ศาสนสถาน และโรงละคร
- ระบบเพลง Background music
- พื้นที่กว้างในสนามบิน ศูนย์การประชุม และโรงพยาบาล
-
128×128 networked audio channels
(Q-LAN / AES67), reduced to 64×64 when
using Video Bridging capability on built-in
USB-B port.
-

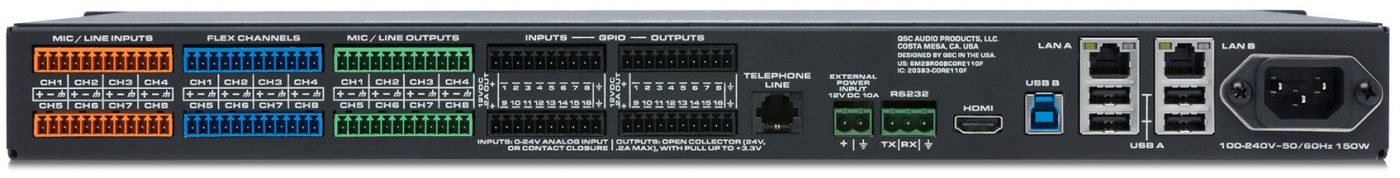

Up to 24 configurable analog audio I/O
-
8 mic/line level analog audio inputs
-
8 line level analog audio outputs
-
8 Flex Channel mic/line level analog
audio inputs or outputs
-
Up to 16 assignable and routeable AEC
processor instances
-

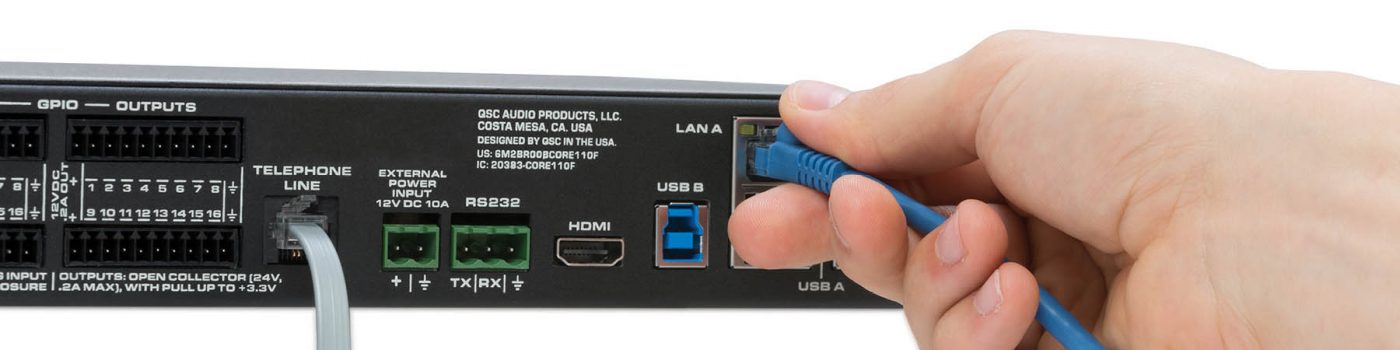

Dual Gigabit Ethernet ports with
assignable application resources offering
any combination of VoIP, Q-LAN Control,
Q-LAN audio or network redundancy
-
Up to 16×16 channels of digital audio
in and out via software definable
USB instances advertised to the host
operating system
-
16 General Purpose Inputs (GPI) x
16 General Purpose Outputs (GPO)
-
Internal Universal Power Supply plus
12 Volt DC External Power Supply input
for redundancy or non-mains power
supply sources
-
Single software platform for system
configuration, control and monitoring via
Q-SYS Designer software over Ethernet
with support for static or Auto/DHCP
TCP/IP addressing
-

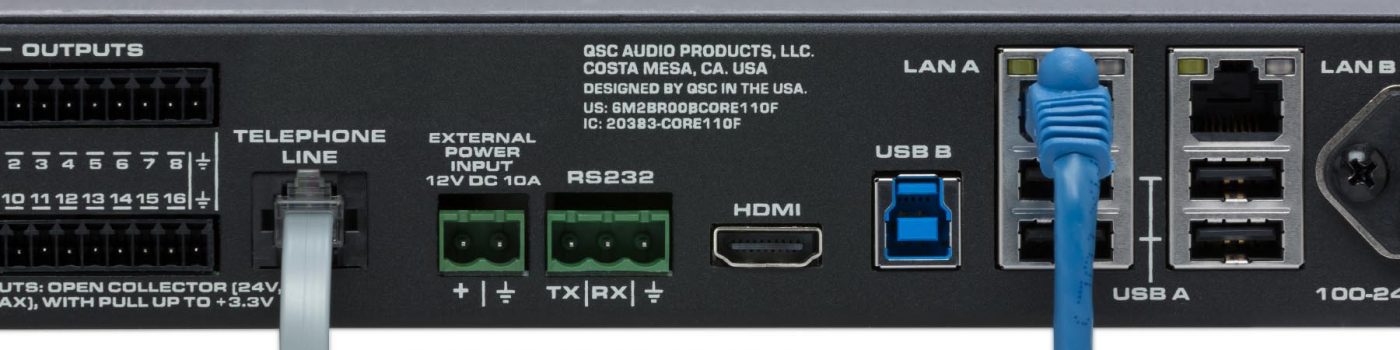

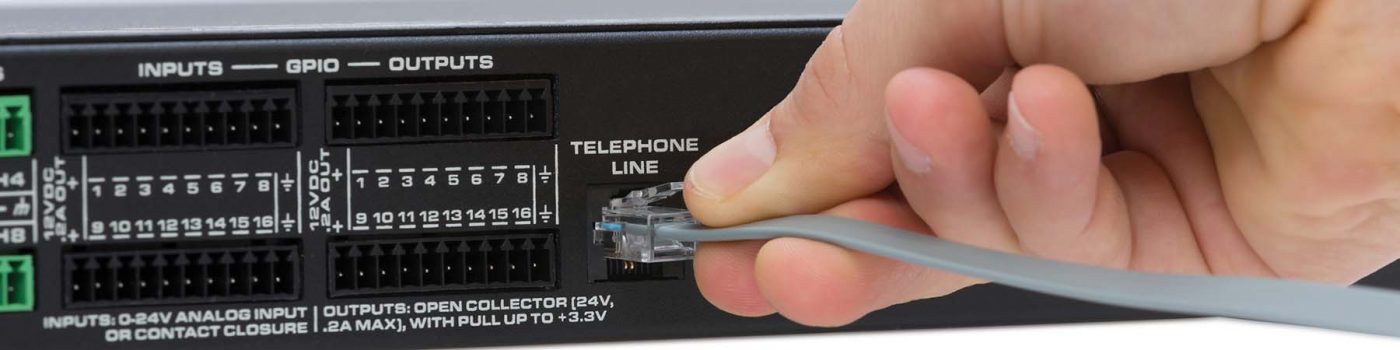

POTS telephone interface via a standard
RJ-11 connector
-
Supports up to 4 VoIP Softphone
instances in addition to the onboard
POTS telephone interface
-
Fully compatible with all existing and
future Q-SYS accessories such as
IO Frames, Paging Stations, and Touch
Screen Control Surfaces running Q-SYS
user control interfaces
-
CE marked, UL listed, and RoHS compliant
-
Covered by QSC Systems 3-year warranty
- Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
- 8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
- True IT Software Integration: The Q-SYS Software platform is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, and more.
- Suite of Software-Based Conferencing Technology applications: Built and owned by QSC from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing and gating automixers.
- Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
Model Core 110f |
|
Input Frequency Response |
|
20Hz to 20kHz @ +21dBu | +0.05dB/-0.5dB |
Input THD+N @ 1KHz |
|
@ +21 dBu Sensistivity & +21 dBu input | < 0.1% |
@ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |
@ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |
@ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |
@ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |
EIN (no weighting, 20Hz to 20kHz) | < -121dB |
Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |
Input Dynamic Range |
|
@ +21 dBu Sensitivity | > 109.5dB |
@ +10 dBu Sensitivity | > 106.4dB |
@ -10 dBu Sensitivity | > 104.6dB |
@ -39 dBu Sensitivity | > 104.6dB |
Input Common Mode Noise Rejection |
|
@ +21 dBu Sensitivity | |
@ +10 dBu Sensitivity | 56.5 |
@ -10 dBu Sensitivity | 73.2 |
@ -39 dBu Sensitivity | 63.2 |
Input Impedance (balanced) | 5K Ohms Nominal |
Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |
Phantom Power | +48v DC, 10mA per input max |
Sampling Rate | 48kHz |
A/D – D/A Converters | 24-bit |
Overall Dimensions/Weight | Device Height: 1.75 inches (44 mm) Device Width: 19.0 inches (483 mm) Device Depth: 11.12 inches (282.5 mm) Device Weight: 11 lbs. (5.0 kg) Shipping Height: 6.0 inches (152 mm) Shipping Width: 23 inches (584 mm) Shipping Depth: 14 inches (356 mm) Shipping Weight: 12.4 lbs. (5.6 kg) |
Output Frequency Response |
|
20Hz to 20kHz @ all settings | +0.2/-0.5 dB |
Output THD | 0.003%, +10 dBu Max output level |
Output Crosstalk @1khZ | >100dB Typical, 90dB max |
Output Dynamic Range | >108dB |
USB B |
|
Bit Depth | Selectable 16-bit, 24-bit |
Number of Channels | up to 16×16 |
Sample Rate | 48kHz |
Output Impedance (balanced) | 220 0hms |
Output Level Range : (1dB Steps) | -39 dBu min to +21 dBu max |
Power Consumption | 60 watts, typical. 120 watts max |
BTU/Heat load: | 205 BTU/Hour |
Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe) |
