ชุดโฮมเธียเตอร์ ONKYO HT-S7805 ระบบเสียง 5.1.2 ชาแนล รองรับ รองรับทั้ง Dolby Atmos และ DTS:X สัญญานวีดีโอช่อง HDMI input 8 ช่องที่รองรับสัญญาณ 4k/60Hz HDR จากแบรน์ ONKYO
ONKYO HT-S7805 5.1.2-Channel Network A/V Receiver/Speaker Package
Start the next season with life-changing sound
Experience the ultimate in pure sound flexibility. The powerful yet compact HT-S3910 transforms tinny TV sound into a thrilling sonic sensation with Dolby Atmos® and DTS:X® playback through 3.1.2 channels. Legacy soundtracks are remapped to localize sound and add height dimensionality, or enjoy 3D immersion without height or rear speakers connected thanks to Dolby Atmos Height Virtualizer* and DTS Virtual:X™ technologies, which place you at the heart of the event. Support for 4K/60p and HDR primes you for next-gen Ultra HD content. Power an HDMI® network dongle via USB terminal or enjoy streaming audio with Bluetooth® technology. Advanced Music Optimizer™ works magic on lossy audio. Everything you need is in the box, right down to cables to connect factory-matched speakers. These full-range units love high-current power, so turn it up and enjoy home entertainment as it’s meant to be.

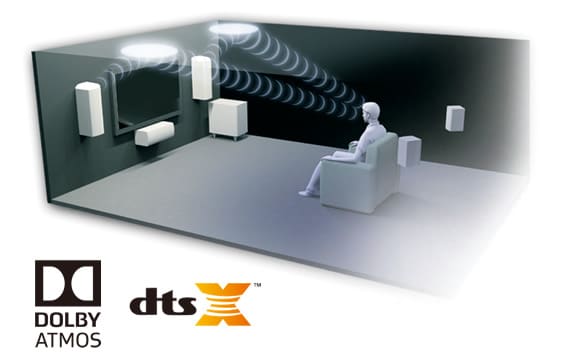

Experience DTS:X™ and Dolby Atmos®
Make object-based Dolby Atmos® and DTS:X™ surround-sound reality in your living room. Sound flows naturally above and around you in three dimensions, putting you literally in the center of the action.

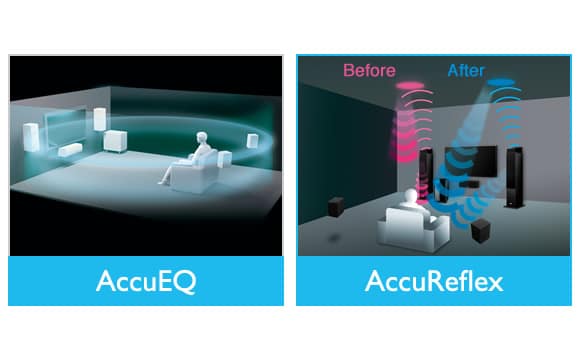

AccuEQ Calibration Featuring AccuReflex Technology
AccuEQ equalizes the surround-sound to suit the room acoustics for crisply focused sound, while AccuReflex aligns the phase of upfiring height speakers with sound coming from your other speakers. Delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.
Wireless Playback with Chromecast built-in* and AirPlay
The HT-R695 receiver, now with Chromecast built-in* and AirPlay, frees music from your smartphone. You can stream music and audio programs from a huge range of Chromecast built-in or AirPlay applications.

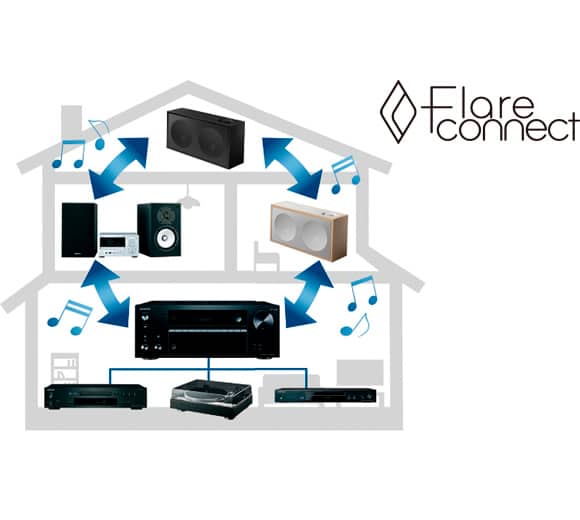

FlareConnect™ Wireless Multi-room Audio
FlareConnect* shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller** app.
For external input availability, click here
Bluetooth Audio / Wi-Fi® with Spotify and TIDAL*
In addition to Chromecast built-in and AirPlay, you can stream virtually any audio from smartphone, tablet, or laptop to your home theater via Wi-Fi® or Bluetooth. Available internet radio and music subscription services include Spotify, Deezer(Deezer HiFi)* and many more.
Supports HDR10, Dolby Vision™*, BT.2020, 4K/60 Hz, and HDCP 2.2
6 HDMI inputs support pass-through of HDR10 and Dolby Vision, the BT.2020 4K video standard, 4K/60 Hz video, and HDCP 2.2-protected premium video content untouched from source to screen.
* Dolby Vision enabled via firmware update.

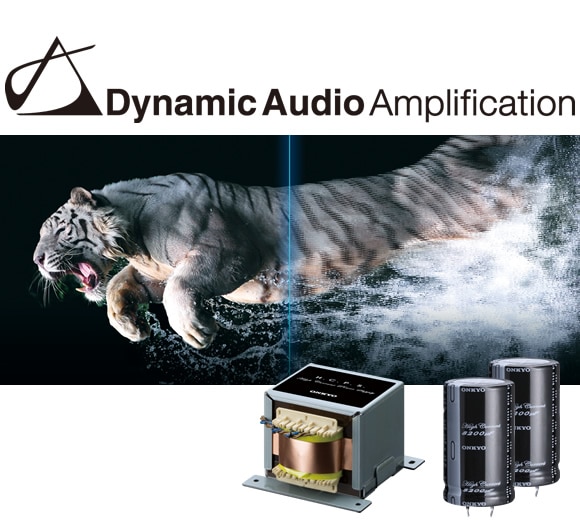

Dynamic Audio Amplification for Thrilling Sound
Power your speakers like never before with Onkyo’s unique Dynamic Audio Amplification system. Music lives and breathes thanks to accurate, noise-free signal processing and hi-current power that dynamically controls your speakers for authentic audio reproduction, filling you with emotion.
Play Everything from Vinyl to Hi-Res Audio
A phono input connects a turntable so you can enjoy your record collection, and we’ve also added easy-to-use universal Hi-Res Audio compatibility as well. Just use our phone app to find your 192/24, 96/24, or 5.6 MHz DSD albums on PC/NAS and relish the clarity and detail on your Onkyo home theater.
FEATURES
HT-R695 7.2-Channel Network A/V Receiver
- Next-Generation DTS:X™ Sound Format Ready
- Supports Dolby Atmos® Format for Exciting Multidimensional Sound
- 4K/60 Hz-Capable 4:4:4 HDMI® Terminals for UltraHD Entertainment*1
- Supports HDCP 2.2, Dolby Vision, and HDR10 for Future 4K/Full HD Video Streaming and Broadcast*2
- 8 HDMI Inputs (1 Front/ 7 Rear) and 2 Outputs
- Built-in Wi-Fi® Certified Wireless LAN Capability
- Bluetooth Version 4.1 (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
- Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, TIDAL, and Deezer(Deezer HiFi*4))*3
- Network and Analog Audio Transmission to Optional Wireless Speaker via FlareConnect™*4 Technology
- Play Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, FLAC, WAV, AAC, Apple Lossless, and DSD 5.6 MHz)
- AccuEQ Room Calibration Featuring AccuReflex Technology for Seamless Object-based Sound from Compatible Speakers (Mic Included)
- Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
- Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone*5 and Android™ Devices*6
- Powered Zone 2 and Zone 2 Line Out for Distributed Analog/Digital Audio Playback in Another Room
- Bi-Amping Capability for Front Channels
- Dynamic Audio Amplification for a Thrilling Audio Experience
- H.C.P.S. (High Current Power Supply) Massive High Power Transformer
- High Current Amp Design to Effectively Drive the Speakers
- Non-Phase Shift Amp Circuits for Realistic Imaging
- VLSC™ for a Clear Audio Experience
- Optimum Gain Volume Circuitry
- PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
- HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
- Dolby® TrueHD and DTS-HD Master Audio™ Decoding
- AK4458 384 kHz/32-bit DAC (8 Channels x 1)
- 32-bit Digital Signal Processing Engines
- 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
- Theater-Dimensional Virtual Surround Function
- CinemaFILTER™
- Direct Mode
- Double Bass Function
- USB 2.0 Port
- Mass Storage Class USB Memory Playback Capability (Including Dolby® TrueHD)
- 2 Component Inputs
- 2 Composite Video Inputs
- 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
- 8 Analog Audio Inputs
- Phono Input for Turntable Connection
- 2 Parallel Subwoofer Pre-Outs
- Location-Numbered Speaker Terminals
- Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
- A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
- Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
- Hybrid Standby Function with HDMI Passthrough
- Tone Control (Bass/Treble) for Front L/R Channels
- 3-Mode Display Dimmer (Normal/Dim/Dimmer)
- 40 FM/AM Random Presets
- Firmware Updates via Ethernet and USB
- RIHD (Remote Interactive Over HDMI) for System Control

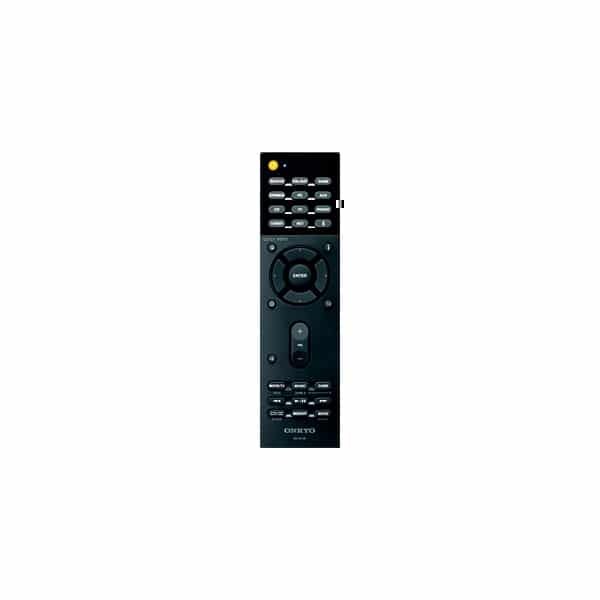

- Simple Remote Control
*1 6G video is supported on HDMI inputs 1/2/3, Main Out, and Sub Out.
*2 HDCP 2.2 is supported on HDMI inputs 1/2/3, Main Out, and Sub Out.
*3 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
*4 Firmware update required.
*5 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
*6 Requires Android 2.1 or later.
HTP-678 5.1.2-Channel Home Theater Speaker System
SKF-693 Dolby Atmos-Enabled 2-Way Bass Reflex Front Speakers/ Full-Range Acoustic-Suspension Height Speakers
- 12 cm OMF Diaphragm Woofer
- 2.5 cm Balanced-Dome Tweeter
- 8 cm Cone (Separately Powered By Height Channel)
- Max. Input Power: 130 W
SKC-591N 2-Way Bass Reflex Center Speaker
- 8 cm Cone Woofer x 2
- 2.5 cm Balanced-Dome Tweeter
- Max. Input Power: 130 W
- Gloss-Finished Side Panels
SKR-590 Full-Range Acoustic-Suspension Surround Speakers
- 8 cm Cone
- Max. Input Power: 130 W
- Note: All speakers feature an impedance of 6 ohms and color-coded speaker terminals.
SKW-658 Bass Reflex Powered Subwoofer
- 20 cm Cone
- Rated Output Power: 80 W (Minimum Continuous Power, 4 Ohms, 100 Hz, 1%, IEC)
- Powerful and Efficient Digital Amplifier
- Down-Firing Design
GENERAL SPECIFICATIONS
A/V RECEIVER
- Power Output: 160 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC) ; 175 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
- Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
- Dimensions (W x H x D): 435 x 173.5 x 378 mm
- Weight: 10.0 kg
SPEAKER SYSTEM
- Frequency Response:
Front 55 Hz–50 kHz
Center 65 Hz–50 kHz
Surround 80 Hz–20 kHz
Height 80 Hz–20 kHz
Subwoofer 27 Hz–150 Hz - Dimensions (W x H x D):
Front/Height 155 x 467 x 183 mm
Center 420 x 115 x 119 mm
Surround 115 x 230 x 96 mm
Subwoofer 230 x 425 x 410 mm - Weight: Front/Height 3.6 kg
Center 2.3 kg
Surround 1.0 kg
Subwoofer 7.7 kg
