เพาเวอร์แอมป์ MAGNET MA-8A เครื่องขยายเสียง 100 วัตต์ ที่ 8 โอมห์ MA-8A Power Amplifier จากแบรนด์ MAGNET

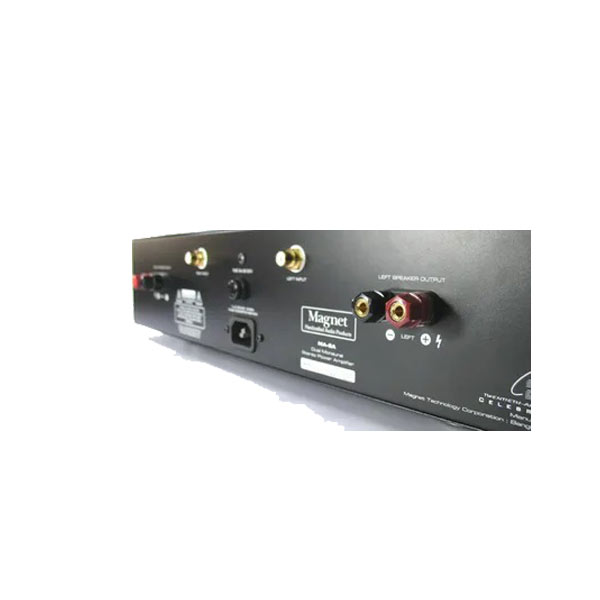

MAGNET MA-8A
Dual Monaural Stereo Power Amplifer
In concept of our design “High performance Power Amplifier” with excellent circuit design in reasonably value, MA-8A is 100 Watt RMS per Channel that it work independently include Transformer, Power Supply and Signal Amplifier.
Design
MA-8A was designed MonoBlock Power Amplifer to used “Fully Complementary Symmetrical Push-Pull concept” with High-Slew Rate in amplifier module and have lowest crosstalk between channel output.
สเปค
| Continuous Power Output Maximum | 100W rms into 8 Ohms per Channel |
| Frequency response | 1.3Hz-132kHz ± 3 dB |
| Total harmonic distortion THD+Noise | (20-20,000 Hz at Max power output) : < 0.1% |
| Input Impedance | 33 KOhm |
| Input Sensitivity | 1.25 V |
| Signal to noise Ratio | -120 dB |
| Power Requirement (AC) | 220V ± 10%, 50-60 Hz, 300W (MAX) |
