ปรีแอมป์ ITC T-6245 สามารถเลือกกระจายสัญญาณเสียงได้ 6 กลุ่ม ใช้แรงดันไฟฟ้า 220 โวลท์ เอซี, 50/60 เฮิร์ท Preamplifier จากแบรนด์ ITC

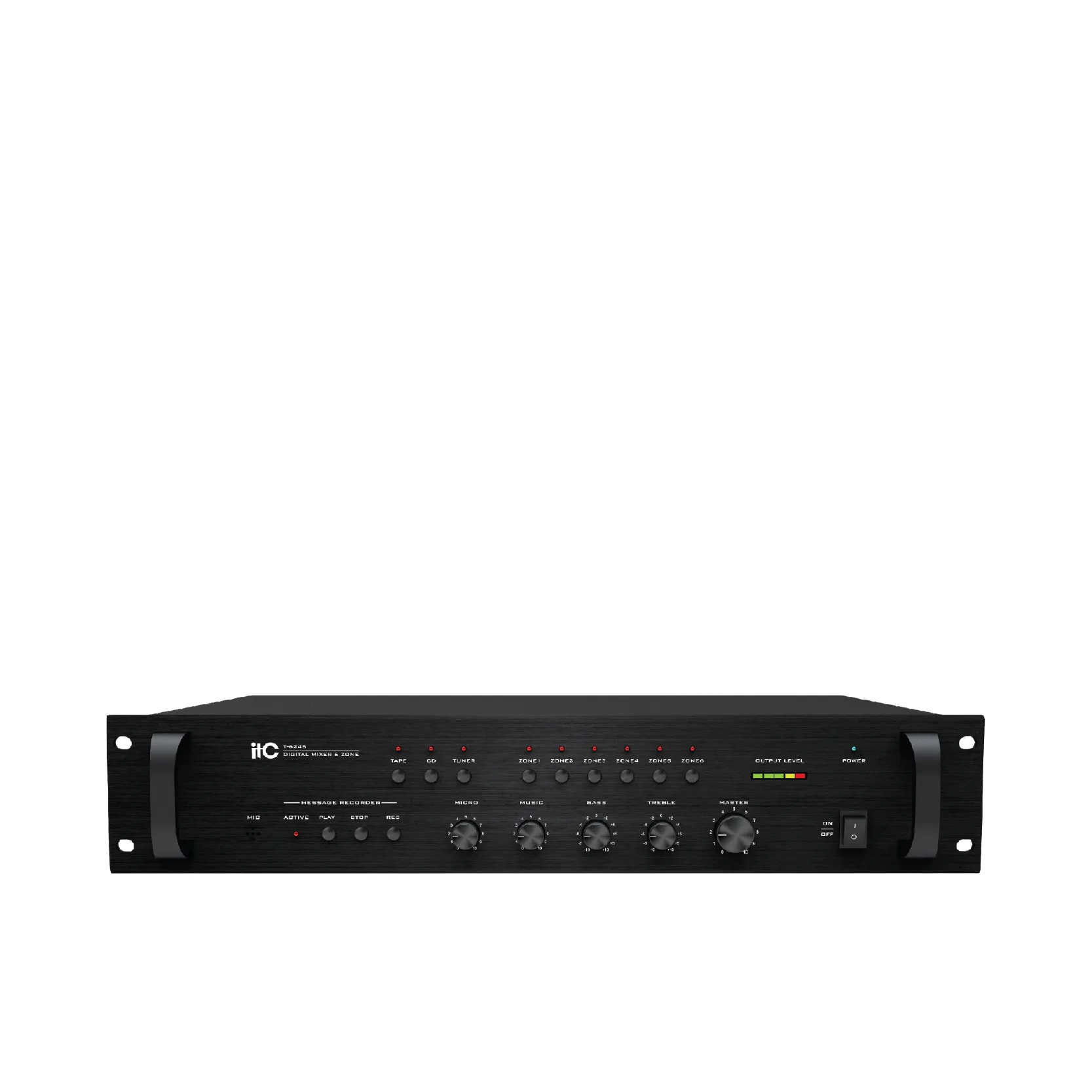

ITC T-6245
6 Zone Integrated Preamplifier with Recoder
คุณสมบัติ
- Mixer with 6 zone speaker selector for source selection and zone control
- Build-in mic and recorder for easy voice message recording and storage
- 3 audio sources direct selection on front panels
- 6 zone selection buttons on front panel
- 6 zone paging console work together with the mixer through RJ45 port for remote control and announcement
- Mic input by XLR type with phantom power and gain control
- 3 aux inputs for tape, CD and tuner
- Built-in chime, whose remote trigger and volume is provided
- 3 voice messages broadcast in continuous and once modes
- 3 channel pre outputs: music, music/page and page
- 6 zone line outputs for power amplifier
- Volume control is provided for mic, music, mater, record and message broadcast, plus bass and treble ton e control
- Indications include zone selector, source selector, record state, power and output level meters.
- 4 levels of priority from high to low: remote paging console, Mic1, chime, pre-recorded message broadcast.
สเปค
ITC T-6245
CONSOLE INPUT
- Sensitivity
- ±5 mV/600Ω , ±500mV/10KΩ
- S/N Ratio
- >68dB
- Frequency Response
- 50Hz~17KHz(+1, -3dB)
MIRCOPHONE INPUT
- Sensitivity
- ±5 mV/600Ω , ±500mV/10KΩ
- S/N Ratio
- >68dB
- Frequency Response
- 50Hz~17KHz(-3dB)
- Phantom Power
- +48V
3 AUXILIARY INPUTS
- Tuner and Tape Input Sensitivity/Impedance
- 200mV/47Ω
- CD Input Sensitivity/Impedance
- 500mV/47Ω
- S/N Ratio
- >90dB
- Frequency Response
- 20Hz~20KHz(+1, -3dB)
CONTROL
- Bass
- ±12dB at 100Hz
- Treble
- ±12dB at 10KHz
- Chime
- 2 tone active for contact free in priority and BGM
- Normal Distortion
- >0.05%
OPERATING CONDITION
- Power Supply
- ~110V/60Hz or ~230V/50Hz & DC 24V
- Dimensions
- 484x303x88mm
- Max number of paging console
- 6
