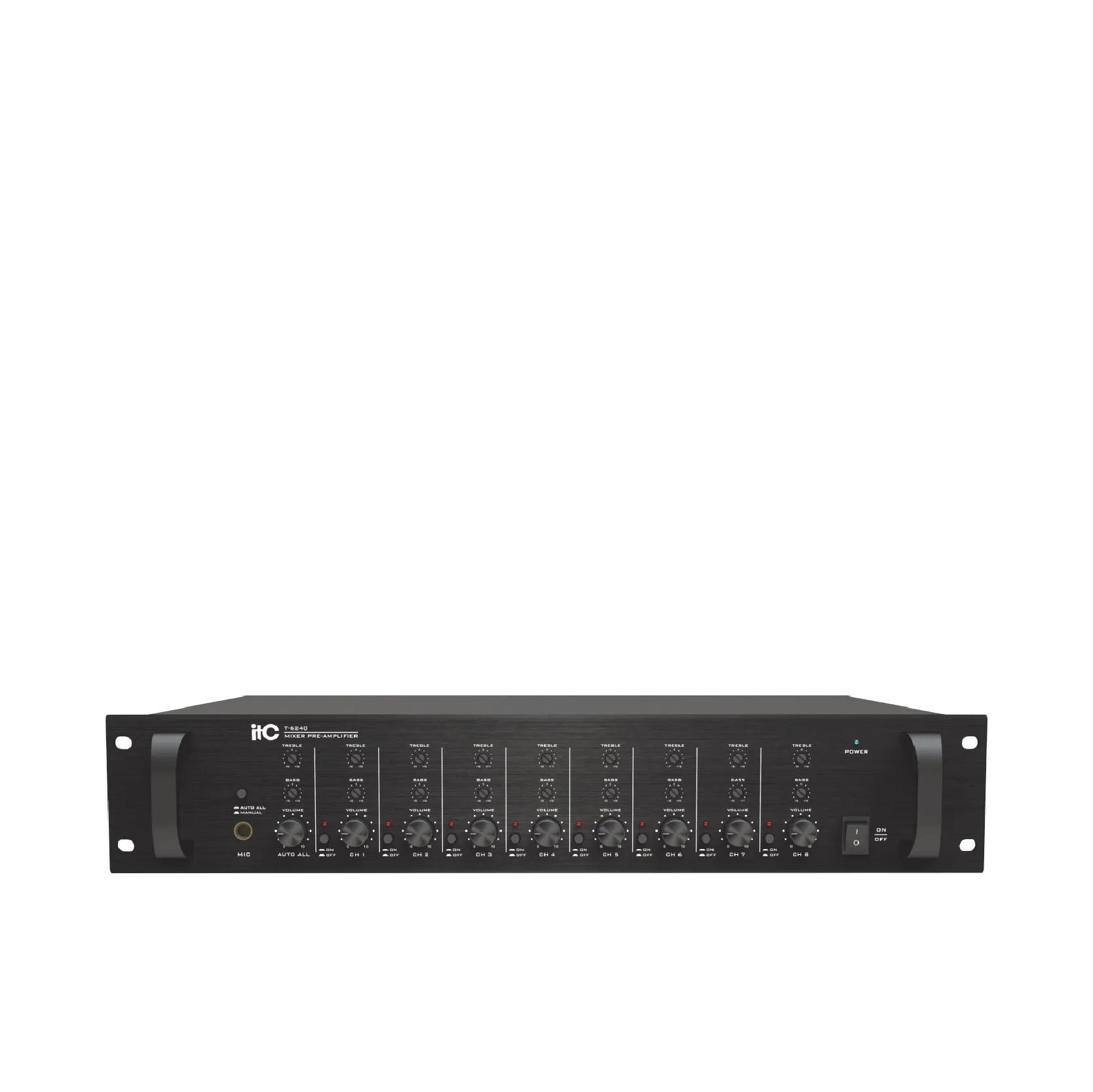

มิกเซอร์/ปรีแอมป์ ITC T-6240B 8 แชลแนล 8-Channel Mixer Pre-Amplifier T-6240B จากแบรนด์ ITC
ITC T-6240B
6 Zone Integrated Preamplifier with Recoder
- 8 balanced line/Mic inputs by XLR type
- 8 balanced line outputs by XLR type
- One Mic input with VOX priority
- Two EMC priority inputs by XLR type
- EMC1 has priority over all inputs(Except MIC 1)
- 2U rack-mount chassis
Model | T-6240B |
Input | MIC: 5mV/600Ω, balanced |
CH1~CH8: 350mV/15KΩ, balanced | |
EMC(1~2): 350mV/15KΩ, balanced | |
Output | 1V, 600Ω/balanced |
Frequency Response | 20Hz~20KHz(±2dB) |
S/N Ratio | 85dB |
THD | 0.01% |
Crosstalk | MIC: 80dB; LINE 85dB; MIC 1 priority |
Muting Function | EMC1, 2 overrides other input signals(exception MIC 1) |
With 0-30dB attenuation | |
Controls | LINE, MIC controls, channel selectors, power switch |
Indicators | Power LED, MIC channel LEDs |
Protection | AC fuse: 1A |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Power Consumption | 35W |
Dimensions | 484x361x88mm |
Finish | Panel: aluminum plate, balck Case: steel plate, black |
