• Bluetooth Headphone Transmission: Connect any pair of Bluetooth Headphones to the receiver and enjoy music or movie sound with pure freedom. With or without speakers turned on.
• 7.2 channel AV receiver with 80W power per channel: Seven powerful amplifiers tuned to provide the classic and dynamic Denon sound experience
• Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X: Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with an additional 2ch amplifier
• 6 HDMI inputs with full HDCP 2.3 support, 1 HDMI output: Connect up to six media devices and output to one display (ex. TV or projector in the living room and another device in the multi-zone)
• 4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020: Provides the greatest video quality with exceptional brightness, contrast and color
• Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box setup experience
• Amazon Alexa, Google Assistant and Apple Siri voice control: Use your voice to control the AVR-X1600H and wireless music services hands-free
• HEOS Built-in wireless multi-room music streaming technology: Listen from any room of your home for a connected, whole-home audio experience
• Smart TV connectivity: Control the Denon AVR-X1600H with your TV remote via HDMI CEC
• Enhanced Audio Return Channel (eARC): Supports the latest 3D audio formats such as Dolby Atmos and DTS:X from your TV audio signal via HDMI
• Game Mode: Supports Auto Low Latency Mode (ALLM) for lag-free gaming (requires supported 4K display and game console)
• Supports Spotify, Pandora, TuneIn, Deezer and more: Wirelessly stream and enjoy the most popular music services
• High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support: High-resolution audio streaming for Hi-Fi enthusiasts
• Integrated Phono input: Supports vinyl records for Hi-Fi listening
• DSP chip with four 300MHz DSP cores: Powers the latest video, sound and processing needs
• All Zone TV audio: Play the audio from your TV to all zones
• Audyssey MultEQ XT calibration software: Delivers ultimate equalization for your unique listening environment
• “ihiji Invision”, “Domotz Pro” and “OvrC” remote system monitoring and management technology: Lets custom integrators monitor and troubleshoot remotely, drastically reducing downtime
• Includes three-year limited warranty (US Only)

Technical Information

Number of Power Amps

• 7

Power Output

• 145W per Channel
  (6 ohms, 1 kHz, THD 1%, 1 ch)
• 120W per Channel
  (6 ohms, 1 kHz, 0.7%, 2 ch)
• 80W per Channel
  (8 ohms, 20 Hz – 20 kHz, 0.08%, 2 ch)

Speaker Impedance

• 4 – 16 Ω / ohms

Preamplifier Section

Input Sensitivity/Impedance

• 200 mV / 47kΩ/kohms

Frequency Response

• 10 Hz – 100 kHz — +1, –3 dB (Direct Mode)

S/N Ratio

• 98 dB (IHF–A Weighted, Direct Mode)

FM Section

Tuning Frequency Range

• 87.5 MHz – 108 MHz

AM Section

• Tuning Frequency Range 520 kHz – 1611 kHz

General

Power Supply

• AC 120 V, 60 Hz

Power Consumption

• 430W (Standby 0.1W, CEC Standby 0.5W)

Power Consumption No-Sound

• 29W (ECO Mode On)
  39W (ECO Mode Off)

Dimensions (W x H x D)

• 17.1 x 6 x 13.3 in

Weight

• 19.0lbs

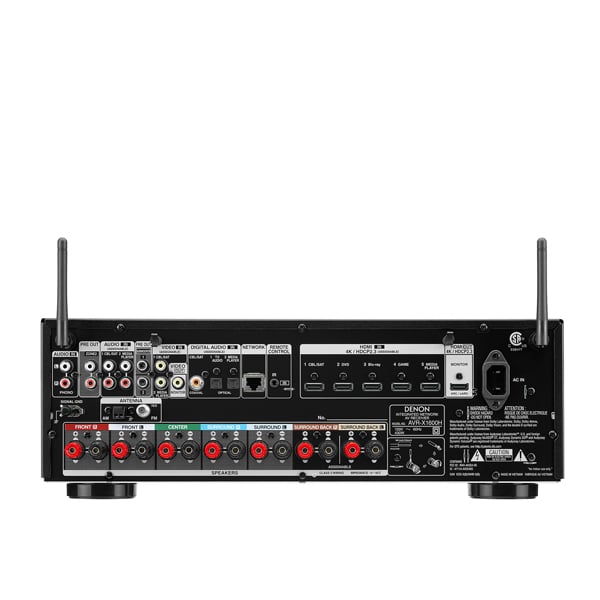

Ports

IN

• HDMI (Front 1) x 6
• Composite (Video) x 2
• Phono x 1
• Analog Audio x 2
• Digital Optical x 2
• USB (Front) x 1

OUT

• HDMI Monitor (eARC) x 1
• Component (Video) x 1
• Audio Pre-out (SW) 2 ch
• Zone 2 (Pre-out and Speaker Assignable) x 1
• Phones x 1

OTHER

• Ethernet x 1
• Microphone Port x 1
• FM/AM Tuner Antenna x 1
