dBTechnologies ES 1203 ชุดลำโพง Active Column 8×4 นิ้ว ซัพวูฟเฟอร์ 2×12 นิ้ว 2400 วัตต์

฿205,140 (รวม VAT 7% แล้ว)

Coming Soon

เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)

สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ชุดลำโพง dBTechnologies ES 1203 Active Column 8×4 นิ้ว ซัพวูฟเฟอร์ 2×12 นิ้ว 2400 วัตต์ เป็นระบบเสียงสเตอริโอที่สมบูรณ์แบบ ของแท้ ส่งฟรี Column PA system จากยี่ห้อ dBTechnologies

ES 1203 – Column PA system

ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.

OVERVIEW

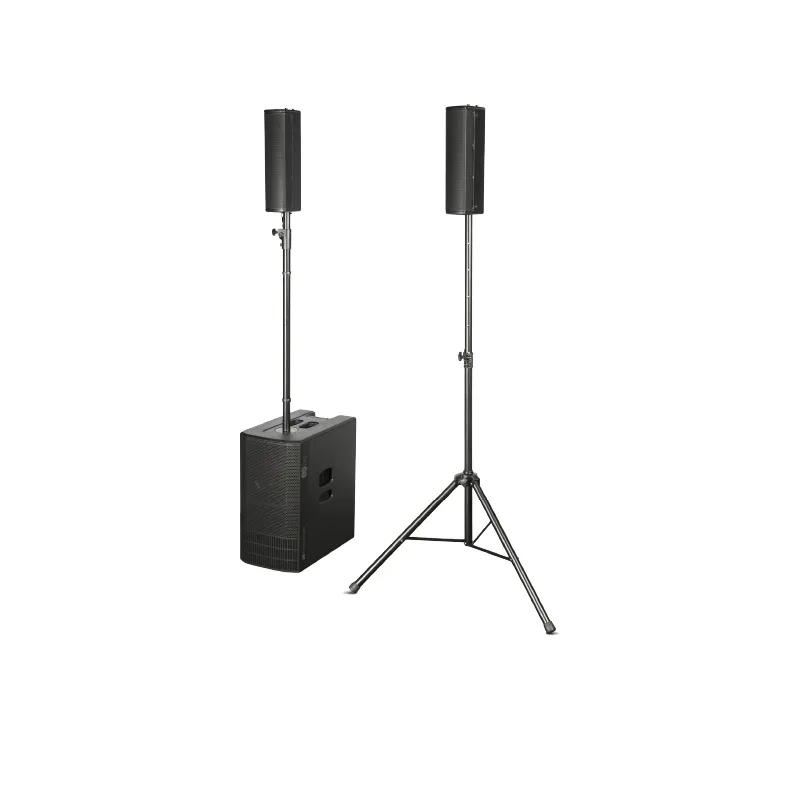

ES1203 is a 3-amped stereo sound system composed by 2 passive wooden tops and one active wooden subwoofer equipped with 2X12” woofers. The sub hosts last-generation Digipro G4® 2400W Peak amp. A powerful DSP (controlled by an intuitive user interface placed on the top of the sub) manages all function of the 5-channel on-board digital mixer as well as the system configuration.

Each top satellite is equipped with 4×4” mid-woofers, whose alignment allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology). The unique design of phase plugs widens the horizontal coverage and guarantees a perfect intelligibility.

Moreover, on board DSP allows users to choose among 3 Configuration Modes (Mono, Stereo or Double Column) and 2 different Steering Modes (Far and Near). This way, the system adapts to all kind of environments and guarantees the best throw pattern.

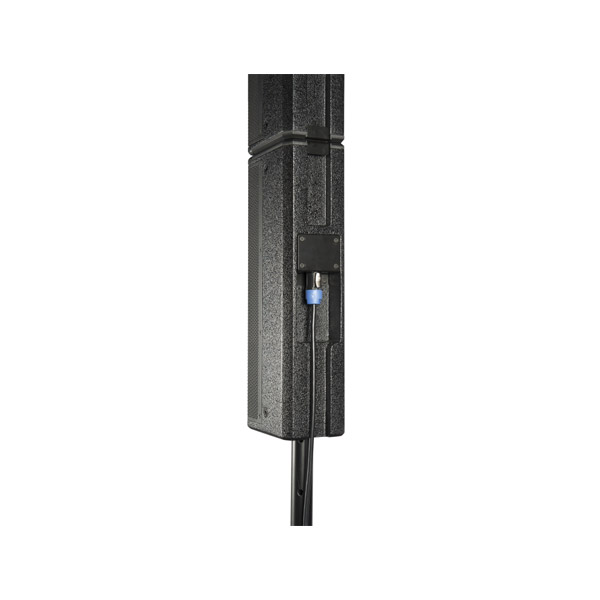

Top satellites work separately in a stereo configuration(placed on tripods or installed with WB-44 accessory) or connected together in mono configuration. The enclosure of both satellites embeds a metal lock system assuring perfect top to top matching and electrical connection. One of the two satellites receives the signal from the sub and relaunch it to the companion top.

ES1203 features an on board 5-channel mixer: the first channel features a MIC/instrument balanced/unbalanced combo connector with an adjustable anti-feedback filter, impedance compensation and microphone gain with 3 positions (0, +10, + 20dB). The second and third channels are MIC/LINE inputs with balanced/unbalanced combo connector. This allows the system to manage up to 3 mic lines at a time.

The built-in Bluetooth module receives stereo audio from portable devices managing the signal in a separate stereo channel.

The balanced AUX/MIX output serves as a direct link or, alternatively, as an Aux output for a stage monitor or another speaker. When in Double Column Mode, this output acts as a source for another ES1203 system providing Left or Right signal.

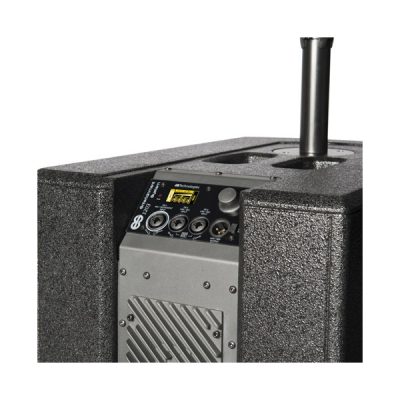

The semi-horn loaded subwoofer houses 2×12” woofers, the amp module and the OLED didplay with system controls. The enclosure, sturdy and stylish, is made of plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. The magnetic dolly DO-ES1203 allows to transport the system quickly and smoothly.

ES1203 is incredibly simple to set up. Users are guided step-by-step to configure the system according to the application thanks to the advanced graphical interface. In facts, the OLED display allows to enter the heart of the system, recall configuration presets, adjust levels, EQ and create a pre/post gain mix for different purposes.

When used in Mono mode (as well as Double Column Mode), the system can be completed with DP-ES1203, a wooden pole which levels out the overall design resulting in an elegant, unobtrusive look which perfectly fits permanent installations.

The ES1203 bundle comes with sub cover, a bag for tops, a telescopic 35mm pole, 2 7m speakon cables and power cable.

DSP: Digital Sound Processor

These models come with a powerful DSP. Serving as an active crossover and controller, it splits and limits the signal and aligns phases and delay times.
Best of all, it even enables dBTechnologies’ engineers to fine-tune the enclosures for the most balanced response.
It is this perfect balance that ensures your signals – speech, playback tracks, and live music – are sent accurately in every detail.
That makes a dBTechnlogies product a real all-rounder for every sound reinforcement challenge.

Neodymium Transducers

Neodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerfull magnetic field once charged.
This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favouring its weight and space capacity.

Preset System

The opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions.
The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors.
The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
