LCD Panel

• 0.63″ (1.6cm) P-Si TFT x 3

Resolution

• XGA

Brightness

• 5000 ANSI Lumens (Normal Mode)
• 3500 ANSI Lumens (Eco Mode)

Colour Light Output

• 5000 ANSI Lumens

Contrast Ratio

• 3000:1

Lamp Life

• 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)*

Lens

• Manual focus, manual zoom x 1.7

Lamp Wattage

• 245W UHP

Focus Distance

• 0.9m~9.1m (Wide), 1.5m~15.1m (Tele)

Distance To Width Ratio

• 1.5 (Wide), 2.5 (Tele)

Diagonal Display Size

• 30~300″ (76~762cm)

Number Of Colours

• 8 Bit/colour, 16.7M colours

Optical Keystone

• 10:1~4:1 Upward shift

Lens Shift

• Vertical 10:0~4:1, Horizontal 1.2:1~1:1.2

Computer Compatibility

• IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, WXGA+, SXGA+, UXGA (compressed), MAC 16″

Composite

• NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

Component Video

• 525i(480i), 525p(480p), 625i(576i), 625p (576p), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60)

Plug & Play

• DDC2B

Speakers

• 8W x 2 Mono

Basic Functions

• Freeze, Magnifying, Blank, Auto adjustment, Search, Auto signal search, Auto eco mode

Picture Adjustments

• Equalizing digital gamma correction, 2-3 pull down for NTSC, Progressive scan, Noise reduction, Overscan, Perfect Fit

Digital Keystone

• Horizontal keystone ±35 degrees, Auto vertical keystone ±37.5 degrees

Advanced Features

• MyScreen, My Memory, My Button (by remote control), My Text, My Source, Picture mode (normal, cinema, dynamic, daytime, black/white/greenboard modes, photo), PC-less presentation, DICOM Simulation, Input source naming (English), Resolution setting, Template, Closed Caption (for NTSC & component 480i only), Audio pass through, Framelock, Audio ports assign, Cloning, Drawing function (Optional wireless pen tablet TB-1 is necessary), Eco Mode (normal, eco, intelligent eco, saver), Instant stack, iOS Connectivity, ImageCare™

Outward

• Easy lamp replace from top, Air filter on side

Power On & Off

• Quick On, Direct On, Auto Off

Security Systems

• Security bar, PIN-lock, MyScreen password lock, Key lock (key pad, remote control), Kensington slot, Transition detector, My Text password lock, Stack lock, Security label

Network

• Network presentation (PC still/moving picture transfer), Configure and control projector via web browser, Receive alerts via e-mail, Projector management via SNMP, Crestron RoomView®, Scheduling, My Image, Displaying text data transferred via the network, Command Control via network, AMX Device Discovery, PJ Link™, Network Bridge

OSD Languages

• 33, including: English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Swedish, Russian, Finnish, Polish, Turkish, Arabic, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian

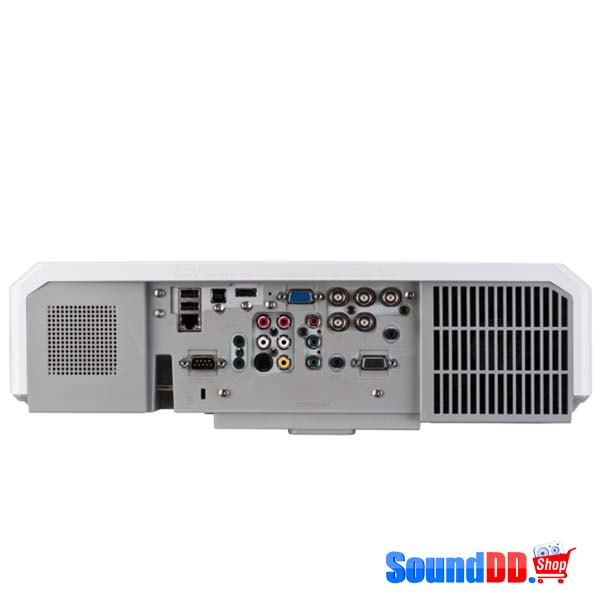

Digital Input

• 1 x HDMI (HDCP compatible)

Computer Input

• 1 x 15-pin Mini D-sub, 5 x BNC

Monitor Output

• 1 x 15-pin Mini D-sub (RCA combination)

Video Input

• 1 x RCA for composite, 1 x Mini-DIN for S-Video, 3 x RCA for component, 1 x 15-pin Mini D-sub (shared with analogue computer in 1)

Audio Output

• 1 x pair RCA (L/R)

Audio Input

• 2 x Stereo Mini Jack
• 1 x pair RCA (L/R)
• 1 x Microphone Jack (Stereo Mini)

USB T Ype A

• 2 x USB Type A (for PC-less presentation or optional wireless pen tablet TB-1)

USB Type B

• 1 x USB Type B (for USB display, USB mouse control)

Wired Network

• 1 x RJ-45

Wireless Network

• IEEE802.11b/g/n ready (optional USB wireless adapter required)

Control

• 1 x 9-pin for RS-232C control

Power Supply

• 100~120/220~240V, auto switching

Power Consumption/Standby

• 350W/<0.5W (AC 220-240V)

Noise Level

• 30dB (Eco Mode)/36dB (Normal Mode)

Weight

• 4.6Kg

Dimensions (W X H X D)

• 401 x 103 x 318mm (excluding feet and extrusions)

Noise Level

• 37 db (Normal), 32db (ECO-1), 29db (ECO-2)

Air Filter (Unwoven)

• Hybrid (up to 5000 hours)

Accessories Supplied

• Remote control with batteries (HL02774), Computer cable, Power cord, Lens cap, Security label, Adapter cover, User manual (detail & concise), Application CD

Replacement Lamp

• DT01171

USB Wireless Adapter

• USB-WL-11N

Solution Products

• TB-1 wireless interactive tablet, IM-1P interactive camera unit, MS-1WL wireless multi-functional switcher, CS-1WL wireless switcher with camera
