ซับวูฟเฟอร์ติดเพดาน TANNOY CMS 801 SUB PI ขนาด 8 นิ้ว 400 วัตต์ ซับวูฟเฟอร์เพดานขนาดกะทัดรัดสำหรับการติดตั้ง ได้รับการรับรองมาตรฐาน UL 2043 Compact ceiling subwoofer จากยี่ห้อ TANNOY
TANNOY CMS 801
SUB PI 8″ Compact Ceiling Mounted Subwoofer for Installation Applications (Blind Mount)
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084429/TANNOY-CMS-801-SUB-BM.jpg)

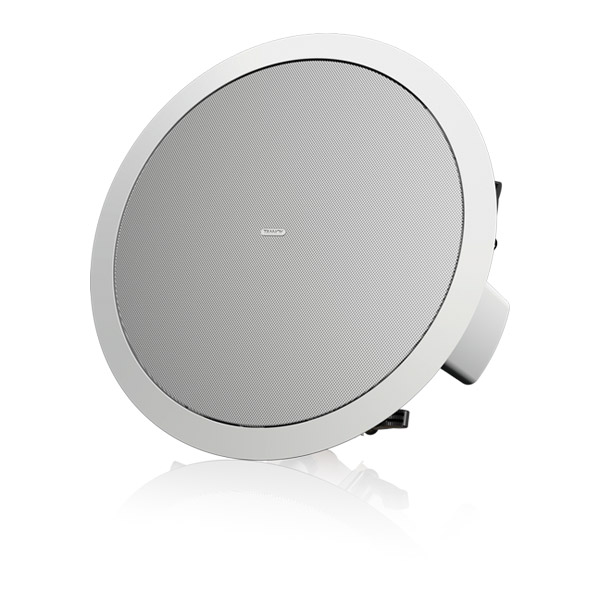

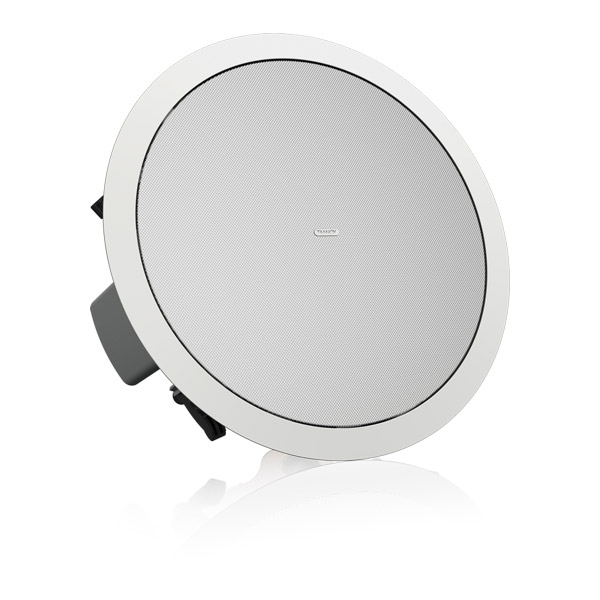

CMS 801 SUB PI
The CMS 801 SUB PI is a compact 400- Watt subwoofer that complements the entire range of CMS ceiling monitor systems. Thanks to a powerful 8″ long excursion LF driver, the UL certified CMS 801 SUB PI delivers dynamic low frequency extension and premium grade audio for music and speech reinforcement applications.
![CMS-1201DCT-ofi](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084616/TANNOY-CMS-1201DCT-ofi.jpg)
Optimised for Installation

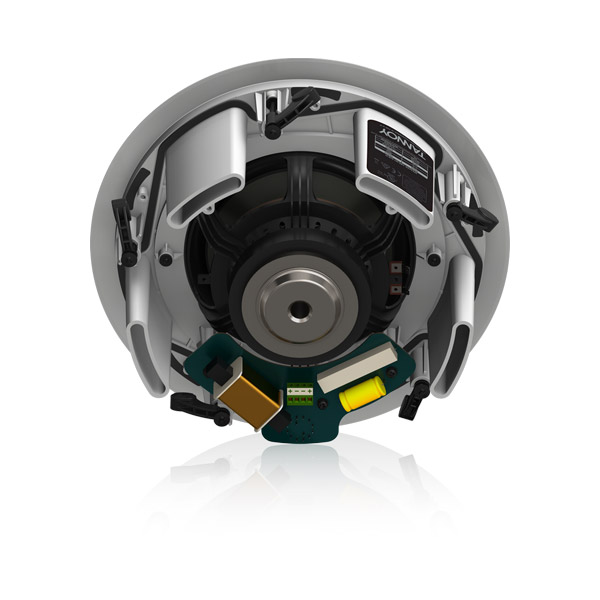

Specifically designed with a self-aligning 5 way clamp system for fast, simple and cost effective installation, CMS 801 SUB PI features removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. A back can and plaster (mud) ring are available separately.
![CMS-1201DCT-lab](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2020/01/19084616/TANNOY-CMS-1201DCT-lab.jpg)
LAB GRUPPEN Ready
The CMS 801 SUB PI is finished in semi matt white and optimised for use with LAB GRUPPEN amplifiers.
- Compact ceiling subwoofer for installation applications
- 100 Watts continuous, 400 Watts peak power

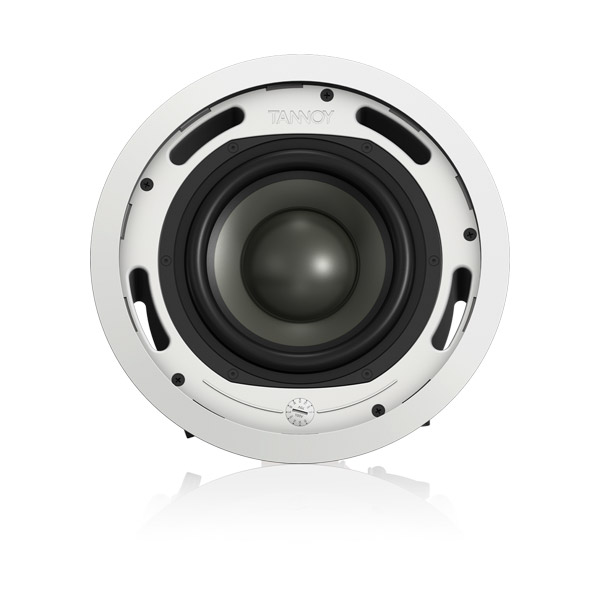

- 8″ long excursion driver for greater low frequency response
- Pre-install version supplied without back can (available separately)
- Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable grille for custom painting
- Self-aligning 5 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
- Designed and engineered in the U.K.
System
Frequency response (-3 dB) (1) | 58 Hz – 160 Hz |
Frequency range (-10 dB) (1) | 42 Hz – 300 Hz |
System sensitivity (1 W @ 1 m) (2) | 92 dB (1 W = 2.45 V for 8 Ohms) |
Rated maximum SPL (2) | 112 dB (average) 118 dB (peak) |
With THP60 | 110 dB (average) |
Power handling (3) | |
---|---|
Average | 100 W |
Programme | 200 W |
Peak | 400 W |
Recommended amplifier power | 200 W @ 8 Ohms |
Nominal impedance | 8 Ohms |
Transformer taps (via front rotary switch) | |
70 V | 60 W/30 W/15 W/7.5 W/OFF & Low impedance operation |
100 V | 80 W/30 W/15 W/OFF & Low impedance operation |
Crossover | Integral 2nd order passive, 160 Hz |
Transducers
Low frequency / High frequency | 1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone |
Enclosure | |
---|---|
Back can | Zinc plated steel |
Baffle | Reflex loaded UL 94V-0 rated ABS |
Grille | Steel, with weather resistant coating |
Safety Features | Safety ring located at rear of enclosure for load bearing safety bondClamping |
Design | Security toggle clamp |
Backcan Options | |
Pre Install (PI) | Separate back can for pre installation |
Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22mm |
Conduit Knockouts | 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75 / 0.87 / 1.1″) |
Connectors | Removable locking connector with screw terminals with “loop through” facility |
Safety agency ratings (pending) | UL-1480, UL-2043, CE |
PI hole cutout diameter | 295 mm (11.61″) |
Dimensions
Bezel diameter | 325 mm (12.80″) |
Back of ceiling surface to rear of back can (PI) | 151.2 mm (5.95″) |
Back of ceiling surface to top of safety loop (PI) | 168.5 mm (6.63″) |
Front of ceiling to rear of bass ports (no back can) PI | 123.7 mm (4.87″) |
Net Weight (ea) | |
---|---|
CMS 801 PI | 4.7 kg (10.34 lbs) |
PI back can | 4.2 kg (9.25 lbs) |
Included Accessories | C Ring, tile bridge, paint mask, cutout template, grille |
Optional Accessories | Plaster (Mud) Ring |
Ordering Information
Model name | CMS 801 SUB PI |
Baffle / Grille Colour | WHITE |
Packed Quantity | 2 |
Packed weight kg (lbs) | 12.2 (26.84) |
