ชุดเครื่องเสียง ห้องประชุม เทรนนิ่ง สัมมนา ไมค์ไร้สาย สำหรับ 12 ท่าน CLEARSOUND ฟรี สายลำโพง 15 เมตร จากยี่ห้อ CLEARSOUND
CLEARSOUND Training and seminars Solution – L
ประกอบด้วย

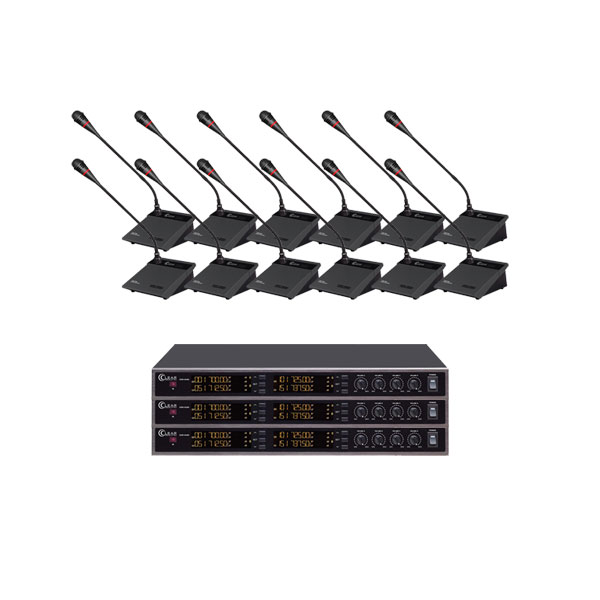

CLEARSOUND CSW-540
ชุดไมค์ประชุมสำหรับ 12 ท่าน แบบไร้สาย ย่าน UHF 3 ชุด
SOUNDVISION SVS-82W
ตู้ลำโพงติดผนัง ขนาด 8 นิ้ว 2 ทาง 4 ใบ
SOUNDVISION SA-150BT
มิกเซอร์แอมป์ 150 วัตต์ 1 เครื่อง
แถมฟรี
สายลำโพง ความยาว 15 เมตร 4 เส้น
ชุดไมค์ประชุม CLEARSOUND CSW-540 สำหรับ 12 ท่าน แบบไร้สาย ย่าน UHF CSW-540 ชุดไมค์ประชุม จากแบรนด์ CLEARSOUND
CLEARSOUND CSW-540 UHF Wireless Conference Microphones systems
CSW-540 Series UHF Wireless Conference Microphones system 4 Channels. the technology for good sound quality flexibility performance frequency response and accurate sound reproduction for a wide variety of applications, such as Meeting Rooms, Public relations, Education institutions, to provide users with an exceptional performance features contemporary design element to enhanced convenience and consistent sound.
- 4 Channels Adjustable frequency.
- IR automatic 20 frequency points.
- Microphone can be used in every channel.
- 2 controllers can used simultaneously.
- LCD screens show working status on the receiver and emitter.
- There are 2 balanced output and 1 mixed unbalanced output, 2 rubber antennas.
- AA 1.5V*3 battery power supply, support 8 hours.
- Light ring on the microphone head will display working status.
- Working distance: 50 meters.
- It’s suitable for various kinds of conference and performance occasion
CSW-540 |
|
Channel number |
4 |
Oscillation Mode |
PLL synthesized |
Modulation Mode |
FM |
Frequency Range |
UHF 803.2 ~ 805.8MHz |
Frequency Stability |
±0.001% |
Max. Deviation Range |
±50KHz |
S/N Ratio |
>90dB |
T.H.D |
<0.5%@1KHz |
Sensitivity |
1.2/UV@S/N=12dB |
Power Supply |
DC 12~17V |
Gooseneck mic length |
430mm |
Audio Output |
Independent: 0-400mV Mixed: 0-300mV |
CSW-540D Transmitter |
|
Frequency Range |
UHF 803.2 ~ 805.8MHz |
Frequency response |
40Hz-16KHz |
Frequency stability |
±0.001% |
Sensitivity |
-43±3dB@1KHz |
Max. deviation Range |
±30KHz |
Dynamic range |
≥100dB |
Type |
Condenser |
Polar pattern |
Super Cardioid |
S/N Ratio |
>90dB |
F/N Ratio |
>80dB |
Transmitter power |
12mW |
Power consumption |
150mA |
Power supply |
DC 4.5V (1.5V AA*3) |
ตู้ลำโพงติดผนัง SOUNDVISION SVS-82W ขนาด 8 นิ้ว 2 ทาง 180 วัตต์ ลายโวลท์ 70/100V SVS-82W surface-mount speaker จากแบรนด์ SOUNDVISION
SOUNDVISION SVS-82W 8 inch two-way surface-mount speaker
The SVS-82W is a new Passive two-way surface-mount speaker ideal for indoor and outdoor applications requiring high-quality sound. Model SVS-82W designed for a wide range of commercial audio applications including retail shops, hotels, shopping malls, restaurants, conference – rooms, bars and health clubs. Model SVS-82W are available in black, Transformer Taps 70V: 40W, 20W, 10W, 5W | 100V: 80W,40W, 20W, 10W available for constant voltage systems.
- Passive Two-Way Full-range Loudspeaker.
- Elegant design.
- High-quality sound.
- Indoor and outdoor applications.
- All-weather versatility IP54. (*SVS-82WP)
- High sensitivity.
- Transformer Taps 70V, 100V
- 8-inch LF transducer 65Watts rms
- 1-inch HF transducer 25Watts rms
- Power Handling 180Watts
- Frequency Response
- 55Hz ~ 20kHz (-3dB)
- 45Hz ~ 20kHz (-10dB)
- coverage H 90° x V 60°
All-weather versatility | IP54 (*SVS-82WP) |
Color | Black |
Input Connections | Euro block |
Speaker Type | Full-range, Mid-High, Two-Way |
Transformer Taps | 70V : 40W, 20W, 10W, 5W | 100V : 80W, 40W, 20W, 10W 8Ω Bypass |
Frequency Response | 55Hz ~ 20kHz (-3dB) |
45Hz ~ 20kHz (-10dB) | |
Sensitivity 1 W/1 m | 94 dB |
Max. SPL/1m (calc) | 120 dB |
Coverage (Nominal -6 dB) H | 90° (±45°) |
Coverage (Nominal -6 dB) V | 60° (±30°) |
System Power Handling | 180W Max. / 90W continuous |
LF Transducer | 8-inch Waterproof Paper Cone (Glass fiber cone technology) |
HF Transducer | 1-inch (Silk dome) |
Nominal Impedance (Passive) | 8Ω |
Indoor / Outdoor | Yes |
Material | Engineering-plastics (ABS) |
Dimensions (H x W x D mm) | 240 x 335 x 390mm (without bracket) |
Weight | 11 Kg/ pair, 5.5 Kg / Single |
มิกเซอร์แอมป์ SOUNDVISION SA-150BT 150 วัตต์ 5 โซน มีฟังก์ชั่น BLUETOOTH และ USB/SD player เป็น Mixing Amplifier จากแบรนด์ SOUNDVISION
SOUNDVISION SA-150BT 5 ZONES Mixing Amplifier 150Watts
SA-150BT 5 ZONES Mixing Amplifier 150Watts
Built-in CHIME and SIREN circuitry with push button and volume control on front panel. Five microphone jacks support 48V Phantom Power microphone and 6.35mm plug microphone, pushing the button “VOICE PRIORITY” the MIC1 can be set with priority over the other inputs with 0 ~ 30dB dB attenuation.
All units feature protections against operation under quite severe misuse such as over temperature, over voltage, over load and short
circuit speaker line conditions.
- Built-in Bluetooth receiver and USB/SD player.
- 70V – 100V , 4Ω – 8Ω output loads.
- 5 Zones 100V speaker outputs with separate switch ON/OFF & LED indicator.
- Five 48V Phantom Power sockets support unbalanced 6.35mm jack or balanced XLR jack.
- Mic 1 has priority over the inputs with 0 ~ 30dB dB attenuation.
- High-definition display for the working status of playing programme.
- Built-in Chime and Siren circuitry with push-button and volume control.
- BASS and TREBLE tone controllers. Master volume control.
- Complete protection provided for output short circuit, overload, high temperature.
- Removable rack mounting brackets supplied.
Model | SA-150BT |
Rated Power | 150W |
Power Consumption | 200W |
Frequency Response | 4Ω – 8Ω : 20Hz ~ 20kHz (±3dB) |
70V – 100V : 50Hz ~ 15kHz (±3dB) | |
Speaker Output Mode | Low impedance : 4Ω – 8Ω |
Voltage line : 70V – 100V | |
MIC Input | 5 MIC inputs supporting XLR phantom power connection |
Zone output | 5 Zones selector |
Audio Input | MIC, AUX, CD, TUNER, SD, USB, BLUETOOTH 4.2 |
Audio Output | Speaker Out, ZoneOut, Pre-amp Out Line RCA |
T.H.D | <1% at 1kHz, 1/3 rated power |
S/N | ≥75dB |
Tone Control | BASS : 100Hz (±10dB), TREBLE : 10kHz (±10dB) |
Protection | Short circuit, overload, high temperature |
AC Fuse | T4A |
Power Supply | AC 220V ~ 240V : 50Hz/60Hz |
Power Cord | (3 x 0.75mm²) x 1.5M |
Dimensions (H x W x D) | 100 x 430 x 340mm |
Weight | 9.5 kgs |
