เครื่องควบคุมชุดไมค์ประชุมระบบดิจิตอล AUDIO-TECHNICA ATUC-50CU ควบคุมการสนทนาได้สูงสุด 100 ชุด Control Unit
AUDIO-TECHNICA ATUC-50CU THE HEART OF THE ATUC-50 SYSTEM

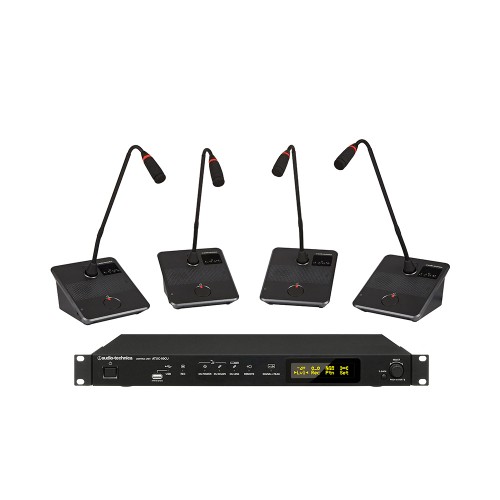

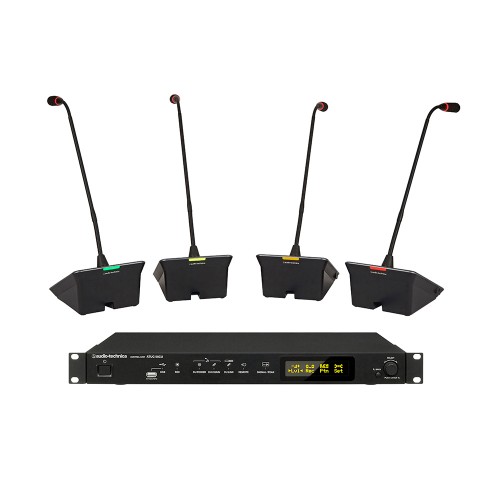

ในซีรีย์ ATUC-50 ประกอบด้วย เครื่องควบคุมไมโครโฟนประชุม ATUC-50CU ที่มาพร้อม Feedback Suppressor ในตัว ,ไมโครโฟนประชุมสำหรับ สำหรับประธาน/ผู้ร่วมประชุม (ก้าน 58 เซนติเมตร) ATUC-50DUa + ATUC-M58H และ ไมโครโฟนประชุมสำหรับประธาน/ผู้ร่วมประชุม (ก้าน 43 เซนติเมตร) ATUC-50DUa+M43H จากแบรนด์ชั้นนำ AUDIO-TECHNICA
Whatever your conferencing or discussion needs, the ATUC-50 is designed to offer reliable, clear and intelligible communication to significantly increase meeting efficiency and effectiveness.
Voice is the quickest and most efficient tool for exchanging ideas – whether in meeting rooms, councils, classrooms or through videoconference, speech is the most direct way of communication and understanding.
Advanced configuration can be used to tailor the system to the users’ needs. Each configuration can be saved and recalled instantly.
Multiple modes allow for adaption to each and every situation including: Free Talk, Request to Talk, Full Remote; various override settings: ‘LIFO’, ‘FIFO’ and ‘Non Override’; manual or voice activation and flexible ‘Mic On trigger mode’.
IP Control allows full parameter access from most third party control systems.
Three Interpretation channels answer today’s need in contemporary meeting rooms.
- รองรับการสนทนาได้มากถึง 100 ชุด
- และสามารถใช้งานประชุมได้มากสูงสุด 300 ชุด
- มีโหมดการประชุม: โหมดคุยแบบอิสระ โหมดขอพูดโดยประธานจะอนุมัติ และ สามารถควบคุมผ่านรีโมทย์คอนโทรลได้
- มีระบบป้องกันเสียงหอนและโปรเซสเซอร์เพื่อคุณภาพเสียงที่ดีที่สุดและความชัดเจน
- ระบบดิจิตอลเต็มรูปแบบพร้อมความสามารถในการอัพเกรดในอนาคต
- Built-in 4 ช่องบันทึกได้นานถึง 65,000 ชั่วโมงบน บนช่องUSB
- 4 เอาต์พุทบาลานซ์และอันบาลานซ์ 1 ช่อง
- 2 อินพุทไมค์ / ไลน์ และ 2 อ๊อกอิน + 2 รีเทิร์นอิน
- 2 ช่องรีเทิร์น สำหรับช่วยแปลภาษา 2 ภาษา
Dynamic range
-
110 dB A-weightedFrequency response+ 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz
Headroom 20 dB
Operating Humidity 25-85%
Operating Temperature Range 0-40° C
Recording Via USB storage device:
-
1/2/3/4 track (WAV) (BWF standard)
-
1/2 track (MP3) (Original format)
-
MP3 bit rate: 64kbps/128kbps/192kbps/256kbps/320kbps
Signal delays
-
MIC Input to Output: 1ms
-
DU to CU: 1.2ms
Signal-to-noise Ratio 90 dB, A-weighted
Total harmonic distortion Less than 0.03% @1kHz unity
Phantom Power DC +48V
Equivalent Input Noise Mic/Line 1-2, less than -126dBu, Rs=150 ohm
Crosstalk at 1 kHzLess than –80dB

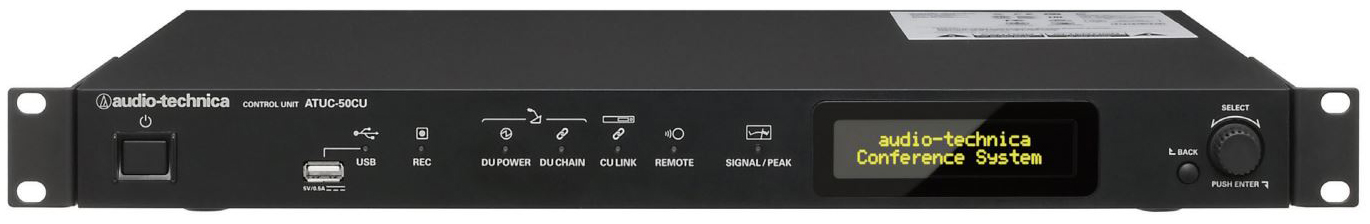

OLED Display
-
20×2 Character type, Color: Yellow,
-
Operating life time: 100,000 hours

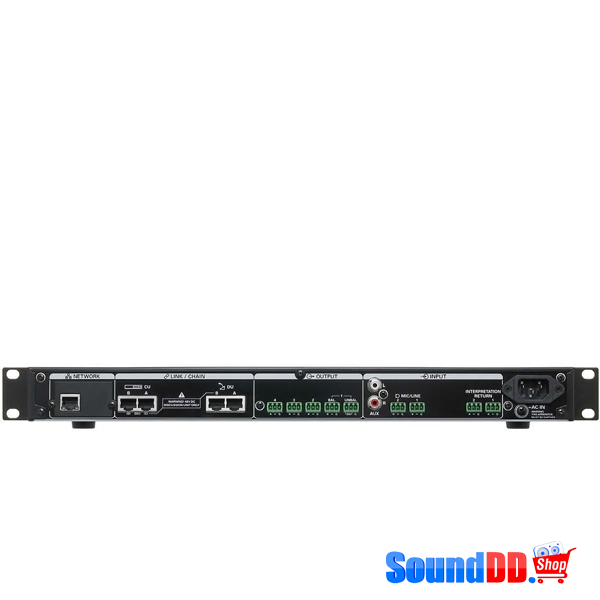

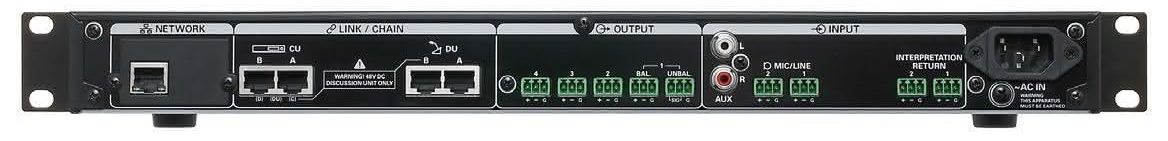

Connections
-
Mic/Line ×2, AUX (ST) ×1, INTERPRETATION RETURN ×2
-
Outputs: Balanced ×4, Unbalanced ×1
-
LINK /CHAIN : DU A/B Terminals, CU A/B Terminals (DU C/D Terminals)
