เพาเวอร์แอมป์ AUDAC SCP212 2 ชาแนล 2 x 120 วัตต์ และ 70/100V มีการออกแบบที่กะทัดรัดและน้ำหนักเบา การระบายความร้อนที่เหมาะสม โหมด Energy-saving standby
AUDAC SCP212
Compact dual-channel power amplifier
OVERVIEW
The SCP series is a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are 3 different models to serve a wide range of applications with power ratings that vary between 240W up to 600W in a half 19” rack space housing.
The compact and elegant design of the half 19” rack space enclosure allows for single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack. Of course, desktop installation or mounting in an equipment rack using the MBS310 series mounting adapters is possible.
You may wonder if so much power in such a small enclosure could cause some heating issues? Not at all, the SCP series is designed in a unique way so that optimal cooling is established, this by passive cooling on the SCP212 in order to improve thermal comfort without the need for additional actions.

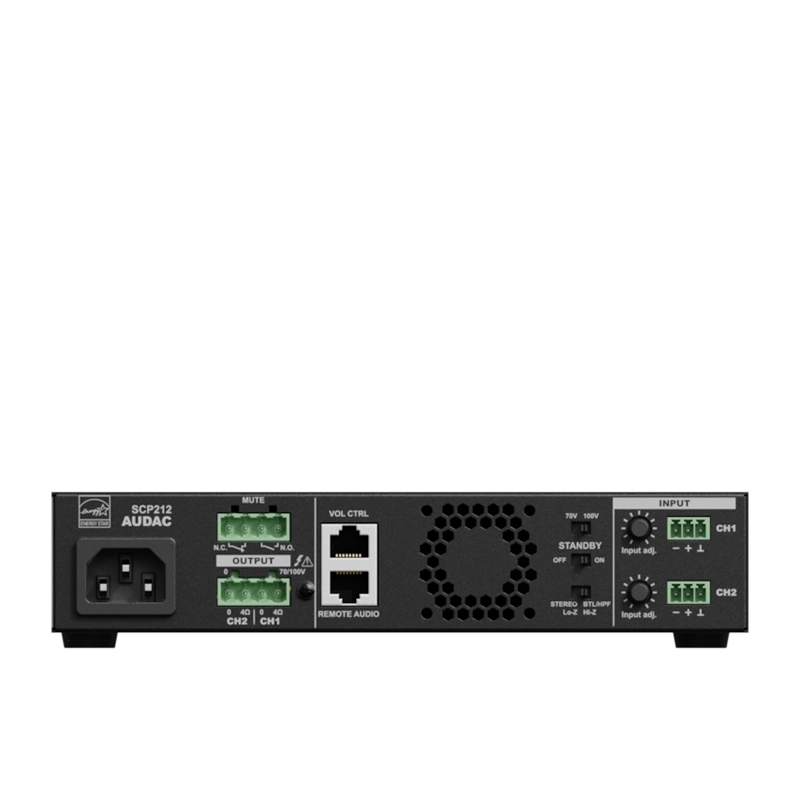

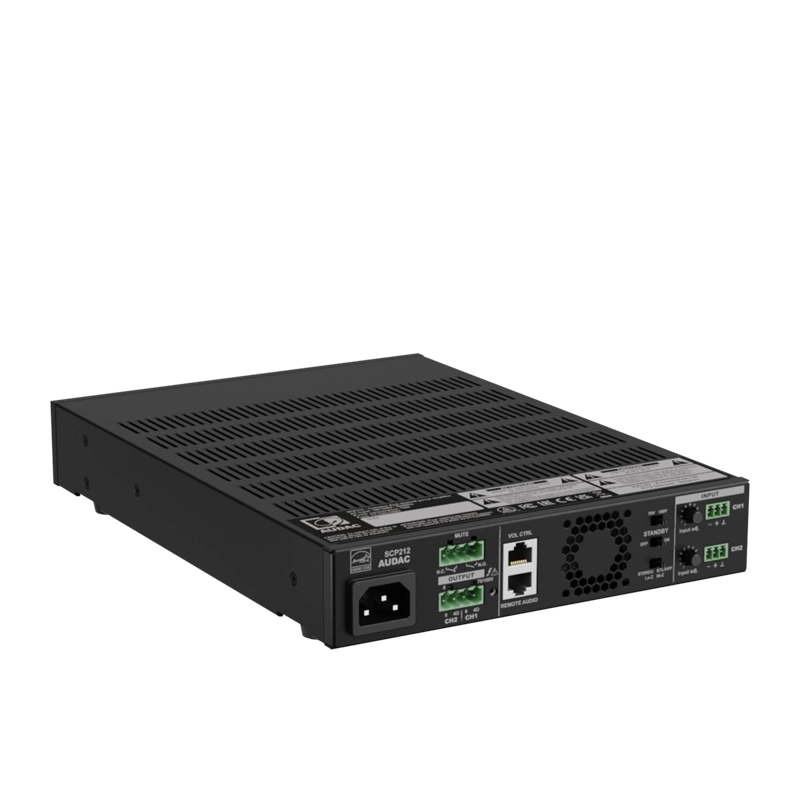

A connection to the WP2xx series input wall panels or volume controllers can be made via the RJ45 connector on the back of the SCP. This allows for a cost-effective plug & play solution to extend or introduce brand new input possibilities and control options.
Equipped with a standby mode switch, the SCP series will enter an energy-saving standby mode after a period of inactivity making him unique in the market. This feature together with the overall energy-efficient design makes the SCP meet the high standards of the Energy Star certification.
When you combine the SCP series with a suitable pre-amplifier or wall-mounted input panel you create a relatively powerful and complete solution for background music installations.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2023/09/18225431/SCP-plug-and-play-compatible.webp)
WP2xx & VC series
These input wall panels or volume controllers can be connected via a RJ45 connector on the back of the SCP. A cost-effective plug & play solution to extend or introduce brand new input possibilities and control options.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2023/09/18225432/SCP-optimal-cooling.webp)
Optimal cooling
So much power in such a small enclosure could cause some heating issues? Not at all, the SCP series are designed in a unique way so that optimal cooling is established, passive cooling on the SCP212 and active cooling on the SCP224 and SCP230.
![](https://sounddd.s3.ap-southeast-1.amazonaws.com/wp-content/uploads/2023/09/18225430/SCP-same-power-less-energy.webp)
Same power, less energy
Optimal power consumption with ENERGY STAR® compliant standby-functionality, easy controllable with a switch on the back of the device. Enable or disable the ‘Auto standby mode’ whenever you like.
Features
- Stereo low impedance or 70/100V bridge mode
- Compact and lightweight design
- Unique optimal cooling
- Energy-saving standby mode
- Compatible with WP2xx series remote wall input panels
- Compatible with VC remote volume controllers
