SHURE SVX2 Wireless Handheld Transmitter

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Specifications :

• Transmitter Type: Handheld
• Dimensions: 254 mm X 51 mm diameter
• RF Output Power: 1
• Battery, endurance: 10 h
• Weight: 270 g

• Further technical specifications:

– Audio Input Level: –20 dBV maximumInput Impedance: 22 kΩ

– RF Output (dependent on applicable country regulations):

– HI power mode: 10 mW maximum

– LO power mode: 1 mW maximum

– Weight: 270 g (10.2 oz.)(without batteries)

– Housing: Molded ABS

– Power Requirements: 2 “AA” size alkaline or rechargeable batteries

SHURE SVX88 Dual Diversity Receiver

Dual channel diversity receiver for use with Shure SVX Wireless systems.

Specifications :

• Power supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
• Maximum output level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW

• Further specs :

– Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)

– Weight: 245 g (11.5 oz.)

– Housing: Molded ABS

– Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):

– XLR connector into 100 kΩ load: -16 dBV (MIC)

– 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)

Output Impedance :

– XLR connector: 600 Ω

– 6.35 mm (1/4”) connector: 600 Ω

– Sensitivity: –105 dBm for 12 dB SINAD, typical

– Image Rejection: >50 dBm, typical

– Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply

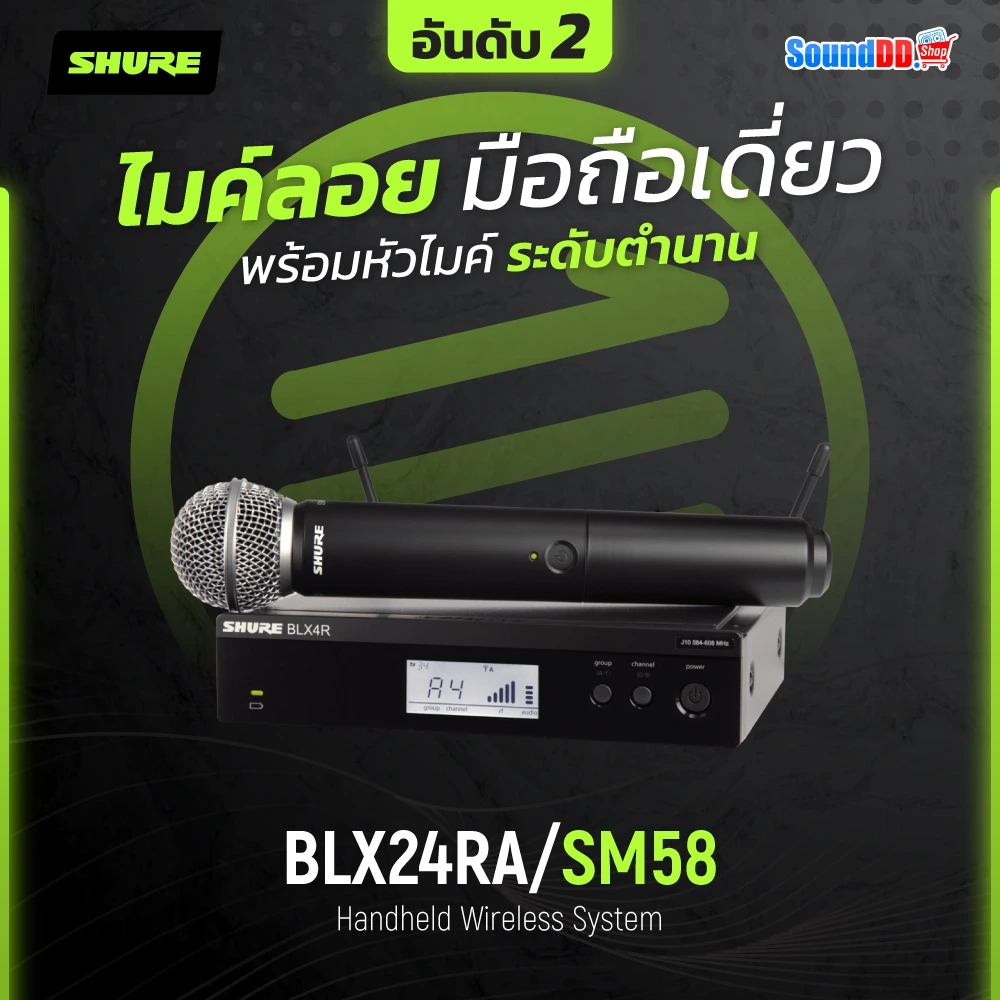

BLX2

• • Audio Input Level

0dB	-20 dBVmaximum
-10dB	-10 dBVmaximum

• • Gain Adjustment Range : 10 dB
  • RF Transmitter Output : 10 mW, typical
  • Dimensions : 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
  • Weight : 7.7 oz. (218 g) without batteries
  • Housing : Molded ABS
  • Power Requirements : 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life : up to 14 hours (alkaline)

BLX4R

• • Output Impedance

XLR connector	200 Ω
6.35 mm (1/4″) connector	50 Ω

• • Audio Output Level : Ref. ±33 kHz deviation with 1 kHz tone

XLR connector	–27 dBV (into 100 kΩ load)
6.35 mm (1/4″) connector	–13 dBV (into 100 kΩ load)

• • RF Sensitivity : -105 dBm,for 12 dB SINAD, typical
  • Image Rejection : >50  dB, typical
  • Dimensions : 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
  • Weight : 8.5 oz. (241 g)
  • Housing : Molded ABS
  • Power Requirements : 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

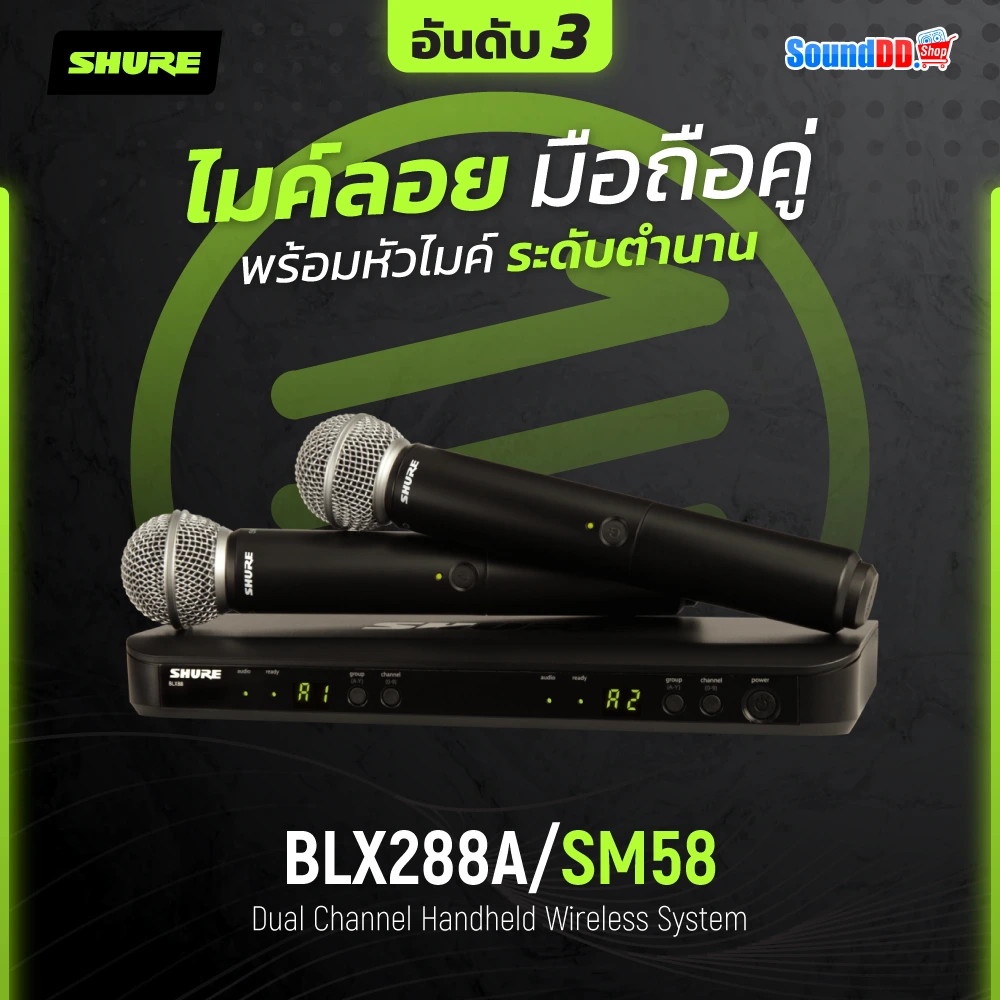

BLX2

• • Audio Input Level

0dB	-20 dBVmaximum
-10dB	-10 dBVmaximum

• • Gain Adjustment Range : 10 dB
  • RF Transmitter Output : 10 mW, typical
  • Dimensions : 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
  • Weight : 7.7 oz. (218 g) without batteries
  • Housing : Molded ABS
  • Power Requirements : 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life : up to 14 hours (alkaline)

BLX88

• • Output Impedance

XLR connector	200 Ω
6.35 mm (1/4″) connector	50 Ω

• • Audio Output Level : Ref. ±33 kHz deviation with 1 kHz tone

XLR connector	–27 dBV (into 100 kΩ load)
6.35 mm (1/4″) connector	–13 dBV (into 100 kΩ load)

• • RF Sensitivity : -105 dBm, or 12 dB SINAD, typical
  • Image Rejection : >50  dB, typical
  • Dimensions : 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
  • Weight : 15.1 oz. (429  g)
  • Housing : Molded ABS
  • Power Requirements : 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

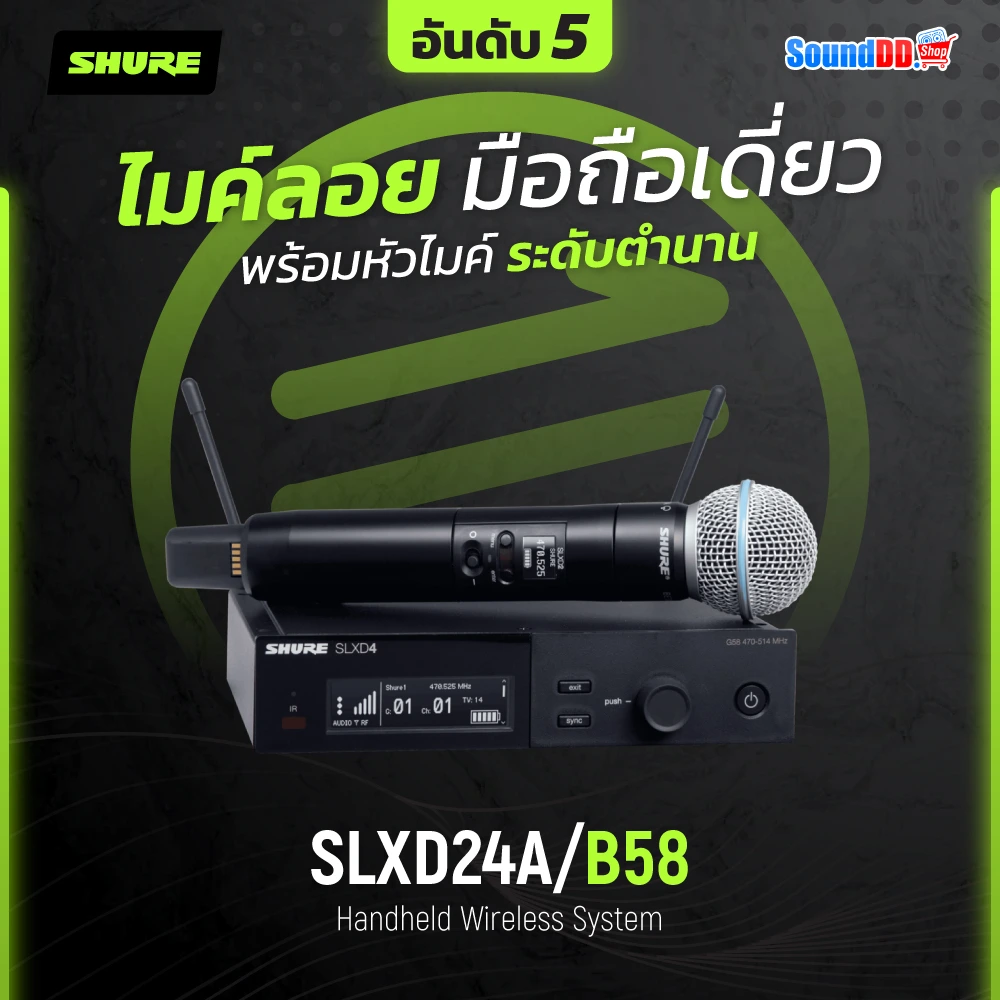

SLXD4 DIGITAL WIRELESS RECEIVER

SPECIFICATIONS (SUBJECT TO CHANGE)

• • Dimensions (H × W × D) : 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
  • Weight : 1.8 lb (816 g) without antennas
  • Housing : Galvanized Steel
  • Power Requirements : 15 VDC @ 600 mA Supplied by external power supply (tip positive)

RF INPUT

• • Spurious Rejection : >75 dB Typical
  • Connector Type : BNC
  • Impedance : 50 Ω

AUDIO OUTPUT

• • Gain Adjustment Range : –18 to +42 dB in 1 dB steps
  • Configuration : 1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance : 1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced), XLR (line): 400 Ω (200 Ω Unbalanced), XLR (mic): 150 Ω
  • Full Scale Output : 1/4″ (6.35 mm): +15 dBV differentially
    (+9 dBV single), XLR (LINE setting): +15 dBV, XLR (MIC setting): –15 dBV
  • Mic/Line Switch : 30 dB pad
  • Phantom Power Protection : 1/4″ (6.35 mm): Yes, XLR: Yes

NETWORKING

• • Network Interface Single : Port Ethernet 10/100 Mbps
  • Network Addressing Capability : DHCP or Manual IP address
  • Maximum Cable Length : 100 m (328 ft)

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER

SPECIFICATIONS (SUBJECT TO CHANGE)

• • Battery Type : Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (Dia. × L) : 1.46 × 6.93 in (37.1 × 176 mm)
  • Weight : 5.2 oz. (147 g)
  • Housing : Aluminum

AUDIO INPUT

• • Configuration : Unbalanced
  • Maximum Input Level : 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type

RF OUTPUT

• • Antenna Type : Integrated Single-Band Helical
  • Occupied Bandwidth : <200 kHz
  • Modulation Type : Shure Propietary Digital
  • Power : 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.

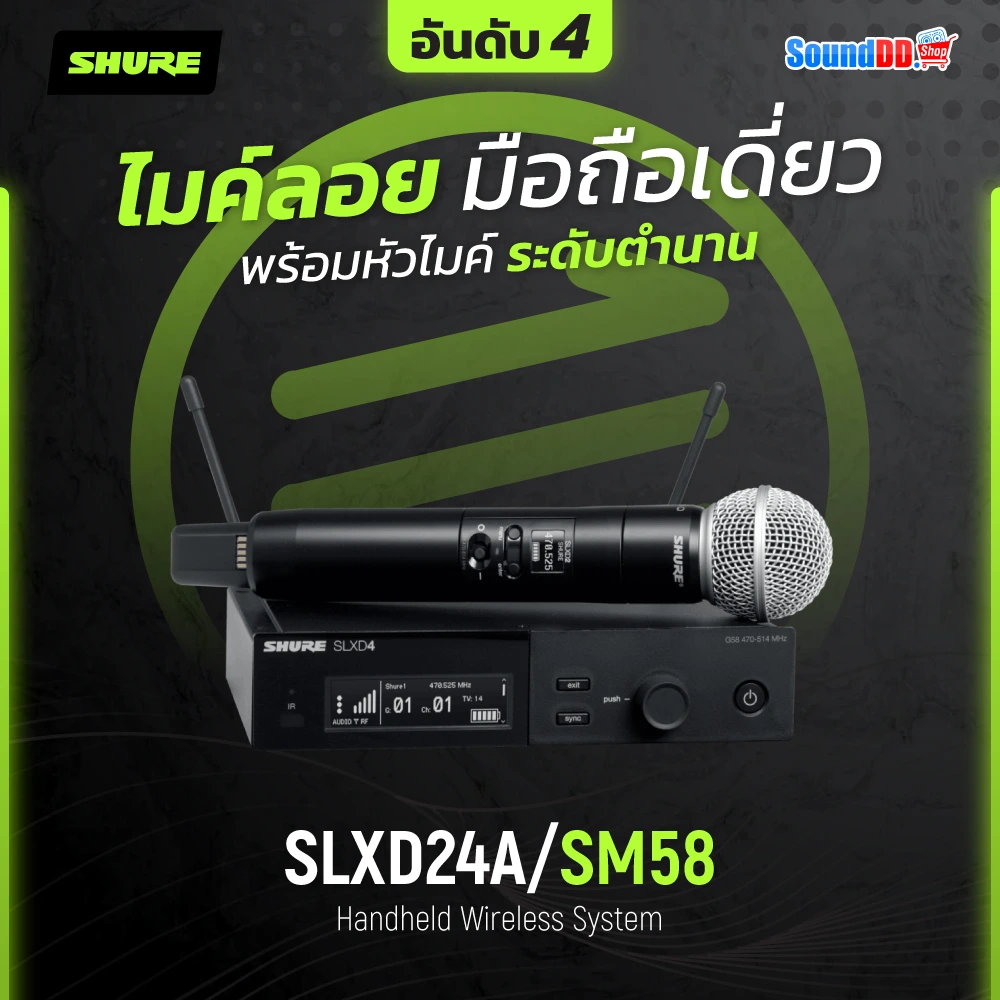

SLXD4 DIGITAL WIRELESS RECEIVER

SPECIFICATIONS (SUBJECT TO CHANGE)

• • Dimensions (H × W × D) : 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
  • Weight : 1.8 lb (816 g) without antennas
  • Housing : Galvanized Steel
  • Power Requirements : 15 VDC @ 600 mA, Supplied by external power supply (tip positive)

RF INPUT

• • Spurious Rejection : >75 dB Typical
  • Connector Type : BNC
  • Impedance : 50 Ω

AUDIO OUTPUT

• • Gain Adjustment Range : –18 to +42 dB in 1 dB steps
  • Configuration : 1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio –,
    Sleeve=ground), XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance : 1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced), XLR (line): 400 Ω (200 Ω Unbalanced), XLR (mic): 150 Ω
  • Full Scale Output : 1/4″ (6.35 mm): +15 dBV differentially (+9 dBV single), XLR (LINE setting): +15 dBV, XLR (MIC setting): –15 dBV
  • Mic/Line Switch : 30 dB pad
  • Phantom Power Protection : 1/4″ (6.35 mm): Yes, XLR: Yes

NETWORKING

• • Network Interface Single : Port Ethernet 10/100 Mbps
  • Network Addressing Capability : DHCP or Manual IP address
  • Maximum Cable Length : 100 m (328 ft)

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER

SPECIFICATIONS (SUBJECT TO CHANGE)

• • Battery Type : Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (Dia. × L) : 1.46 × 6.93 in (37.1 × 176 mm)
  • Weight : 5.2 oz. (147 g)
  • Housing : Aluminum

AUDIO INPUT

• • Configuration : Unbalanced
  • Maximum Input Level : 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type

RF OUTPUT

• • Antenna Type : Integrated Single-Band Helical
  • Occupied Bandwidth : <200 kHz
  • Modulation Type : Shure Propietary Digital
  • Power : 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.

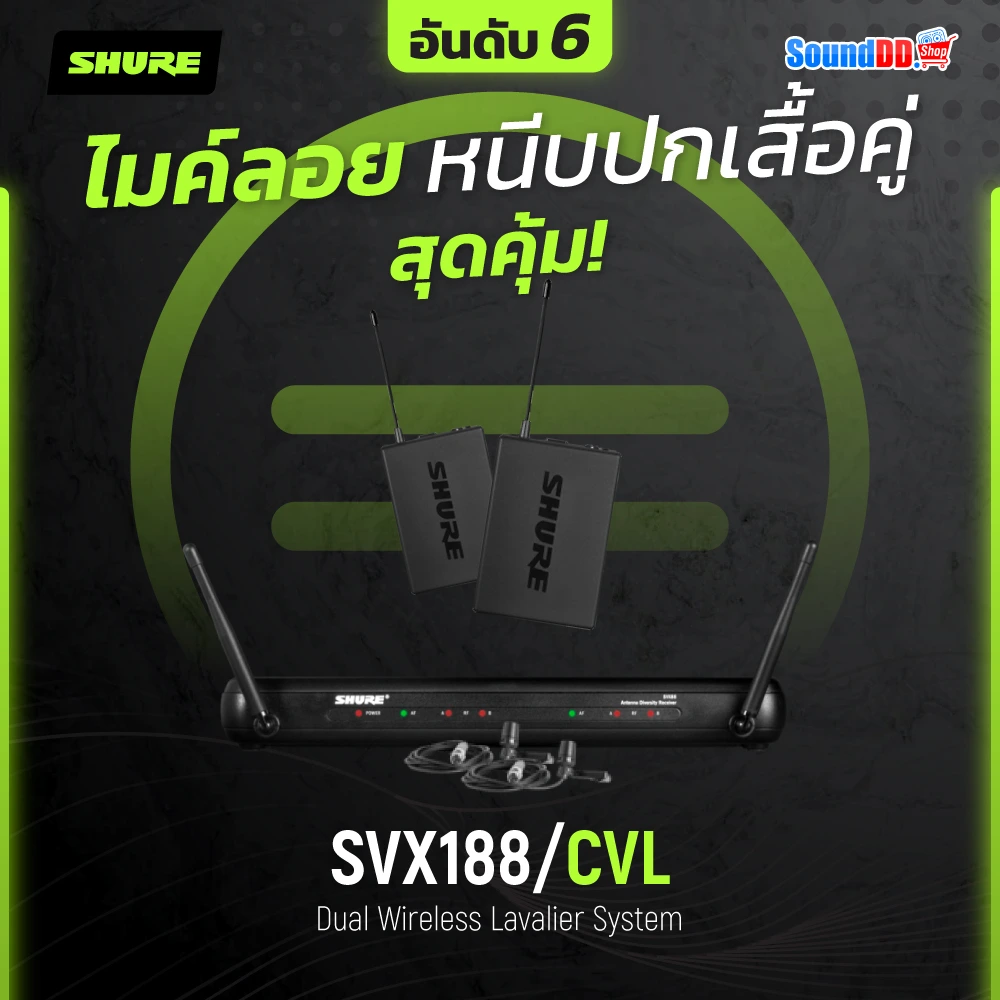

SVX1 Bodypack Transmitter

• • มี LED แสดงสถานะแบตเตอรี่
  • ปรับเลือกกำลังส่งได้ 1mW /10mW
  • ใช้แบตเตอรี่ AA 2 ก้อน ใช้งานได้ 10 ชั่วโมง

SVX88 Dual Channel Diversity Receiver

• • มีเสาอากาศ 2 เสาด้านหน้า
  • มีสวิตซ์ปรับเลือกความถี่การใช้งาน
  • มี LED แสดงสถานะการทำงานของเสาอากาศและสัญญาณเสียง
  • สามารถเลือกใช้แบบ Single Channe และ Dual Channel

CVL Centraverse Lavalier Condenser Microphone with Tie Clip

Clip-on lavalier condenser microphone in a discreet, miniature form factor ideal for professional presentations. Works with Shure wireless systems.

Specification :

Type	Electret Condenser
Frequency Response	694-703 MHz
Polar Pattern	Cardioid

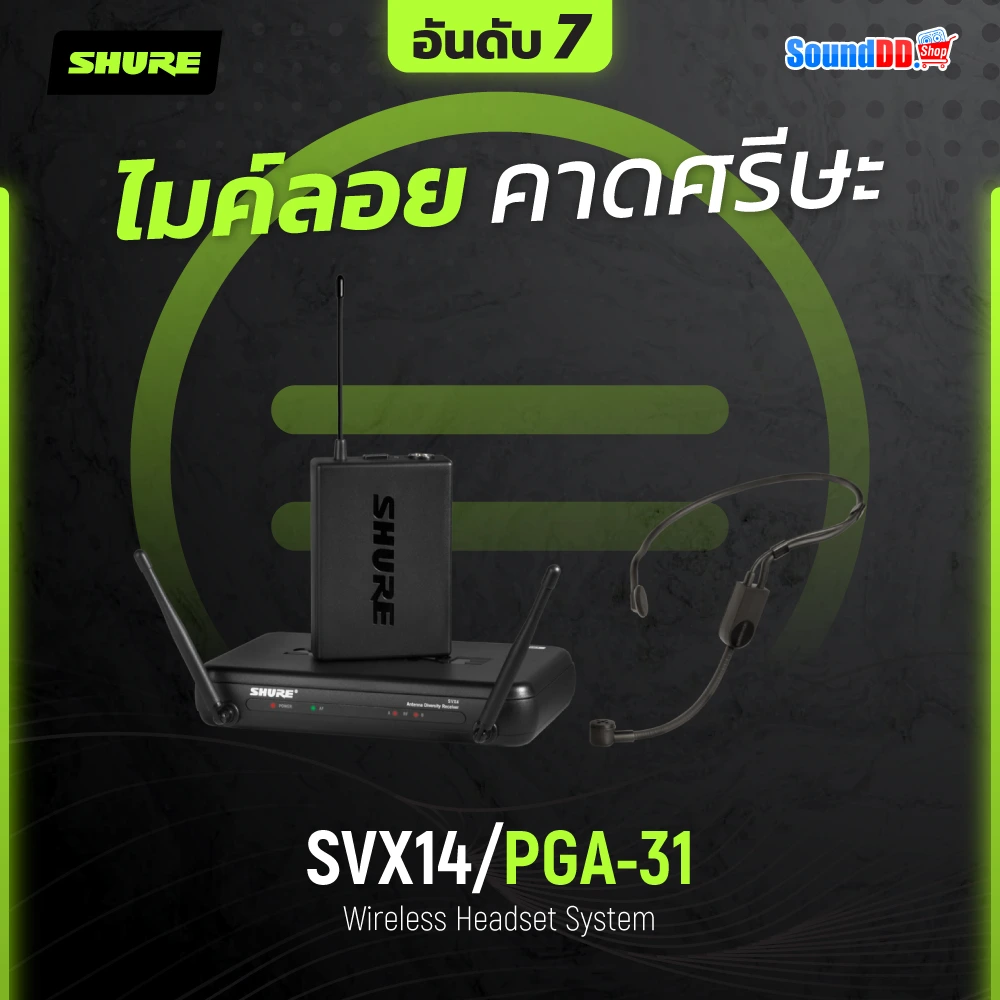

SHURE SVX1 Bodypack Transmitter

The SVX1 Bodypack Transmitter can be used with the SVX Lavalier or Headworn Wireless system.

Specifications :

• Transmitter Type: Bodypack
• Dimensions: 108 mm height X 64 mm width X 19 mm depth
• RF Output Power: 10
• Battery, endurance: 10 h
• Weight: 90 g

SHURE SVX4 Single Diversity Receiver

Single channel receiver for use with Shure SVX Wireless systems.

Specifications :

• Power supply: 12-18V
• Maximum output level: -19 dBV (XLR), -5 dBV (1/4”) (ref. +/-33kHz deviation with 1 kHz tone) mW
